2XSL(st)CH LSZH Cable
double screened low capacitance motor supply cable for frequency converters.
$7.00
APPLICATION
Double screened low capacitance motor supply cable for frequency converters. The screen protects against external interference pulses and ensures an interference-free transmission. Suitable for outdoor application (direct burial not recommended), and for use on tray or in trunking.
CHARACTERISTICS
Voltage Rating
0.6/1kV
Temperature Rating
Fixed: -30°C to +80°C
Flexed: -5°C to +40°C
Minimum Bending Radius
Fixed: 7.5 x overall diameter
Flexed: 15 x overall diameter

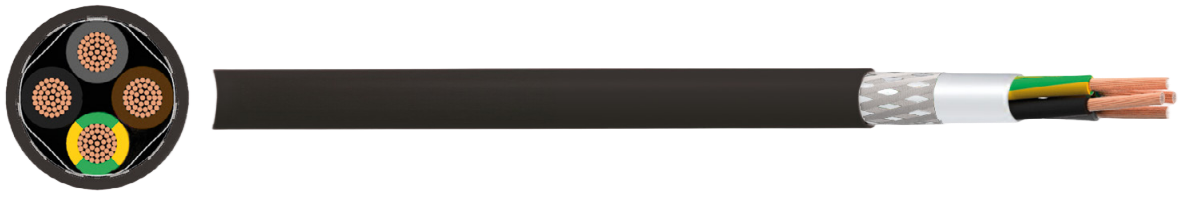

CONSTRUCTION
Conductor
Class 5 flexible plain copper
Insulation
XLPE (Cross-linked Polyethylene)
Separator
PET (Polyester Tape)
Screen 1
Al/PET (Aluminium Polyester Tape)
Screen 2
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Green/Yellow Brown Black Grey
Sheath Colour
● Black
