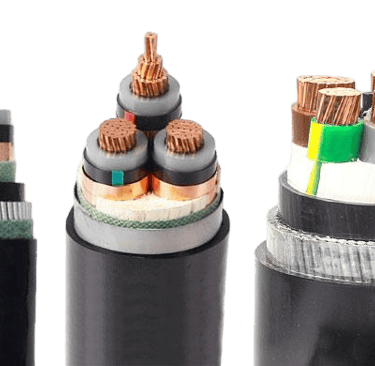

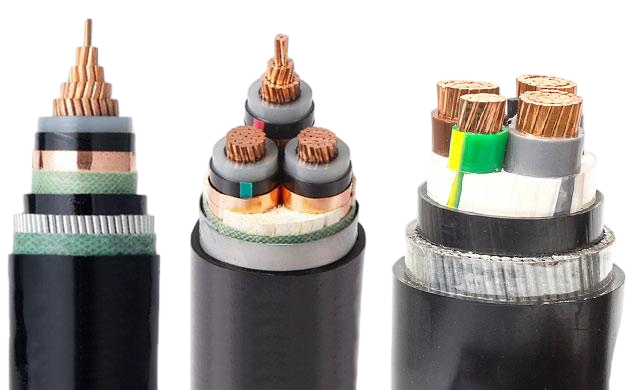

Feichun Armoured Cable AWA & SWA

FEICHUN Cables is a leading armoured cable supplier, providing a complete range of aluminium wire armoured (AWA) and steel wire armoured (SWA) cables. Our portfolio includes low voltage armoured cables and medium voltage armoured cables manufactured in accordance with British, European, and International standards such as BS5467, BS6622, BS6724, BS7835, BS EN 50267, IEC 60502, and BS EN 60332-1-2.

We supply:

Low Voltage SWA Cables (600/1000V)

Medium Voltage SWA Cables (6.35/11kV to 19/33kV)

Single Core AWA Cables for reduced induced currents

Both Copper (Cu) and Aluminium (Al) conductors

Advantages of SWA & AWA Armoured Cables

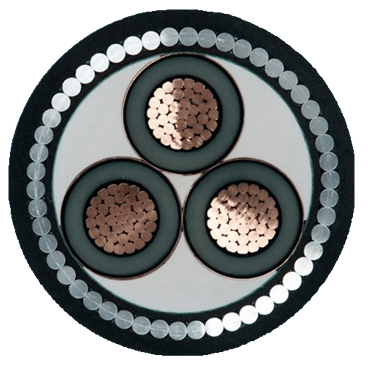

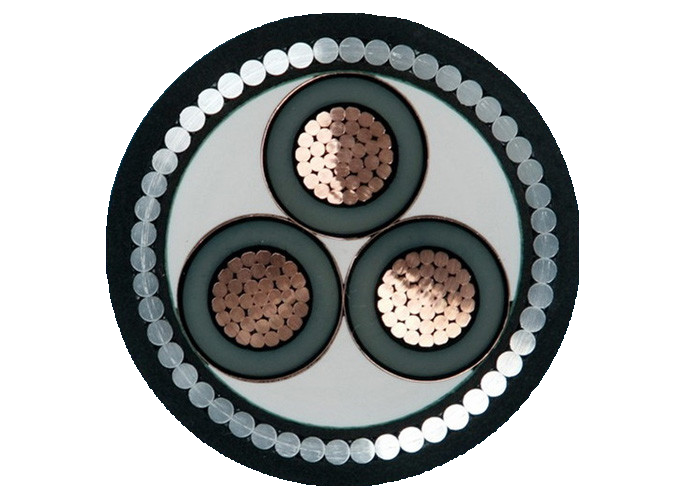

Armoured Cable Construction

Conductor – Stranded copper or aluminium for efficient power transmission

Insulation – XLPE (cross-linked polyethylene) for high temperature resistance and excellent dielectric strength

Bedding – Protective barrier between insulation and armour

Armour – Steel wire armour (SWA) or aluminium wire armour (AWA) for enhanced mechanical protection

Sheath – PVC or LSZH outer sheath for environmental resistance; UV-stable options available

Voltage ratings – 600/1000V, 6.35/11kV, 19/33kV

Applications

Our armoured power cables are suitable for a wide range of environments and industries:

⚡ Mains power distribution networks

⚡ Industrial facilities and factories

⚡ Renewable energy projects (solar, wind, hydro)

⚡ Underground cable installations

⚡ Outdoor applications requiring mechanical protection
