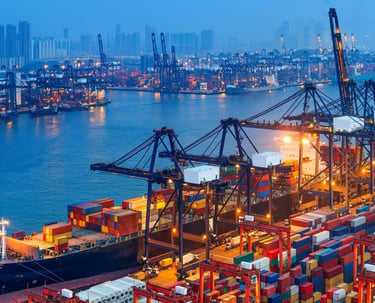

Magnet Crane & Terminal Container Crane Power Cables: Precision-engineered for specialized magnet crane applications and robust terminal container crane power needs.

Superior Dynamic Performance: Capable of managing dynamic loads associated with lifting and unloading containers, ensuring safe and efficient cargo handling.

Precision Flexibility: Engineered for precise and dynamic movements, facilitating efficient ship unloading operations at container terminals.

Broad Temperature Adaptability: Operates flawlessly across a wide temperature range, making it suitable for varied climates and ensuring reliable performance even in extreme conditions.

Exceptional Tensile Strength: Withstands significant pulling forces, providing superior stability and extended longevity in heavy-duty ship unloading applications.

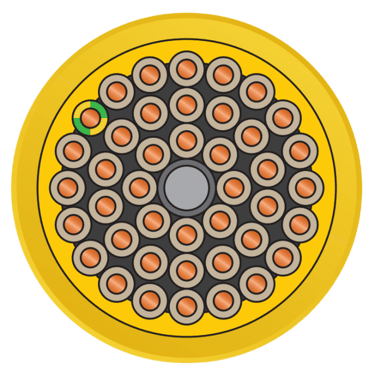

AS/NZS 2802：Heavy-Duty Flexible Reeling Cable – Rubber Insulated – 0.6/1kV – -35°C to +80°C – Optional Signal Core – Functionally Equivalent to (N)SHTOEU (VDE 0250-814)

Max. permissible operating voltage:

AC: 0.7/1.2 kV

DC: 0.9/1.8 kV

AC test voltage (main cores): 3.5 kV (5 Min.)

Maximum tensile load on the conductor: 30 N/mm²

Chemical Resistance: Designed for Tough Environments

Resistance to oil: Acc. to DIN EN 60811-404; DIN VDE 0473-811-404, paragraph 10

Weather resistance: Unrestricted use outdoors and indoors, resistant to ozone, UV, and moisture.

Water resistance: Verified through long-term tests.

Whether it’s oil exposure in a factory or harsh outdoor weather conditions, this cable will stay strong and perform optimally.

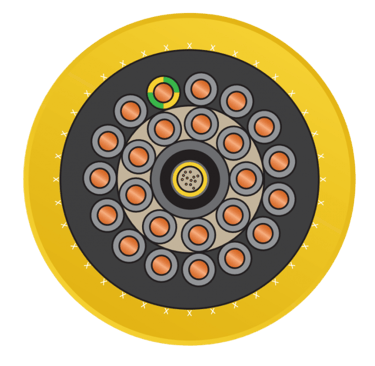

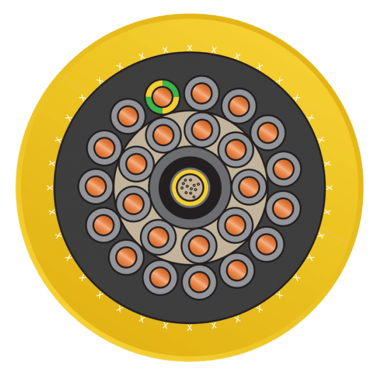

AS/NZS 2802&AS/NZS 1747：Type PROTOLON (SMK+HS) (N)TSKCGEWOEU High-Flex Reeling Cable with Integrated Fibre Optics for High-Speed Port Cranes (≥240 m/min) — VDE 0250-814 Compliant

Anti-Torsion Protection:

The cable incorporates an anti-torsion reinforced braid, crafted from vulcanized polyester threads. This design provides exceptional strength, effectively preventing twisting or kinking during operation.

Integrated Support Element:

A central aramid support element is precisely embedded within the cable, significantly increasing its tensile strength. This robust construction enables the cable to manage high-speed movements without risk of damage from stretching or pulling.

Superior Torsional and Bending Resistance:

Rigorous testing, including reversed bending, torsional stress, and abrasion resistance, confirms the cable's ability to maintain optimal performance even under the most extreme mechanical demands.

Thermal & Environmental Resilience:

For high-speed reeling operations, the cable's ability to withstand extreme temperature variations and demanding environments is paramount:

Conductor Operating Temperature:

Handles conductor temperatures up to 90°C, with a maximum short-circuit temperature of 250°C. This ensures consistent performance and prevents overheating in high-power applications.

Ambient Temperature Range:

Suitable for fixed installations in temperatures from -50°C to +80°C. For flexible operations, it effectively performs in ambient temperatures between -35°C and +80°C.

This broad thermal adaptability makes the PROTOLON cable ideal for a wide variety of industrial environments, from cold storage facilities to hot manufacturing plants.

High-Speed Travel Capability:

For cranes operating at speeds exceeding 240 meters per minute, the cable is designed with no inherent speed restrictions under DIN VDE 0298-3 standards. However, for speeds beyond 270 m/min, we recommend consulting with the manufacturer to ensure optimal performance and suitability for these extreme velocities.

This exceptional flexibility and speed capability enable the PROTOLON cable to be utilized across a wide variety of industrial reeling systems, where quick, efficient movement is crucial for maintaining productivity.

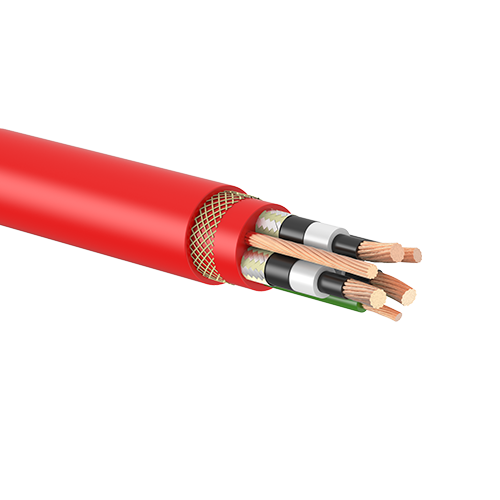

AS/NZS 2802 / VDE 0250-814 PROTOLON (SMK+HS) Cable: Key Features & Design

Fibre-Optic Capabilities:

Equipped with integrated fiber-optic elements, this cable enables real-time data transmission, making it ideal for modern crane systems requiring fast, reliable communication over long distances. Its multi-mode graded index and single-mode step index optical fibers ensure low signal attenuation and high bandwidth, providing a stable and high-speed data connection.

High-Strength Conductor:

The conductor is made from electrolytic, tinned copper (Class FS), ensuring excellent electrical conductivity and mechanical flexibility. This is crucial for high-speed crane operations, where the conductor must effectively manage both the electrical load and mechanical stress from continuous reeling and unreeling.

Optimized Insulation:

Insulation utilizes PROTOLON HS+, a high-quality EPR compound that delivers robust mechanical protection and superior electrical safety. Its lead-free design ensures compliance with modern safety and environmental standards, while an optimized thickness minimizes wear and tear.

Double-Layered Inner Sheath:

The PROTOFIRM double-layered (sandwich-style) inner sheath offers enhanced mechanical protection, particularly against the strain of high-speed movements. It also acts as an effective water barrier, ensuring cable functionality in damp or wet environments.

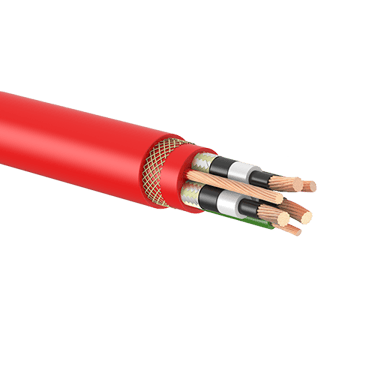

Reinforced Outer Sheath:

The outer sheath, also based on PCP rubber compounds, offers exceptional resistance to abrasion and tearing, providing robust protection in harsh industrial settings. Its bright red color not only ensures tear-proof performance but also significantly improves visibility, a critical factor in busy industrial environments.

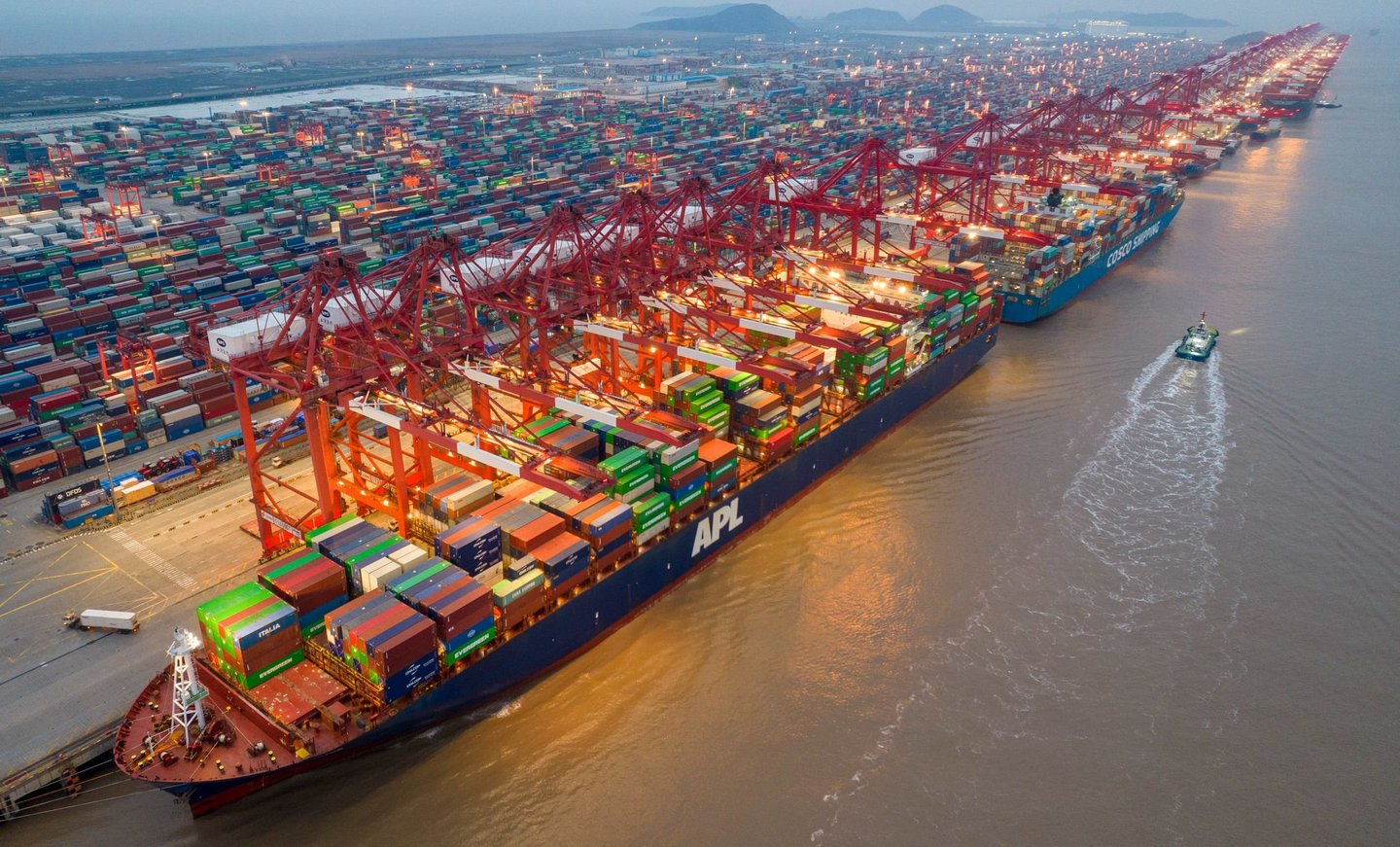

Port & Crane Cables:

Engineered to Withstand the Challenges of Modern Maritime Operations

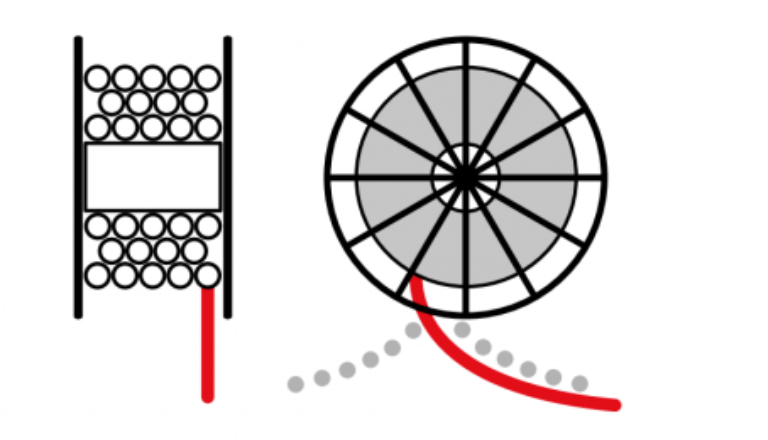

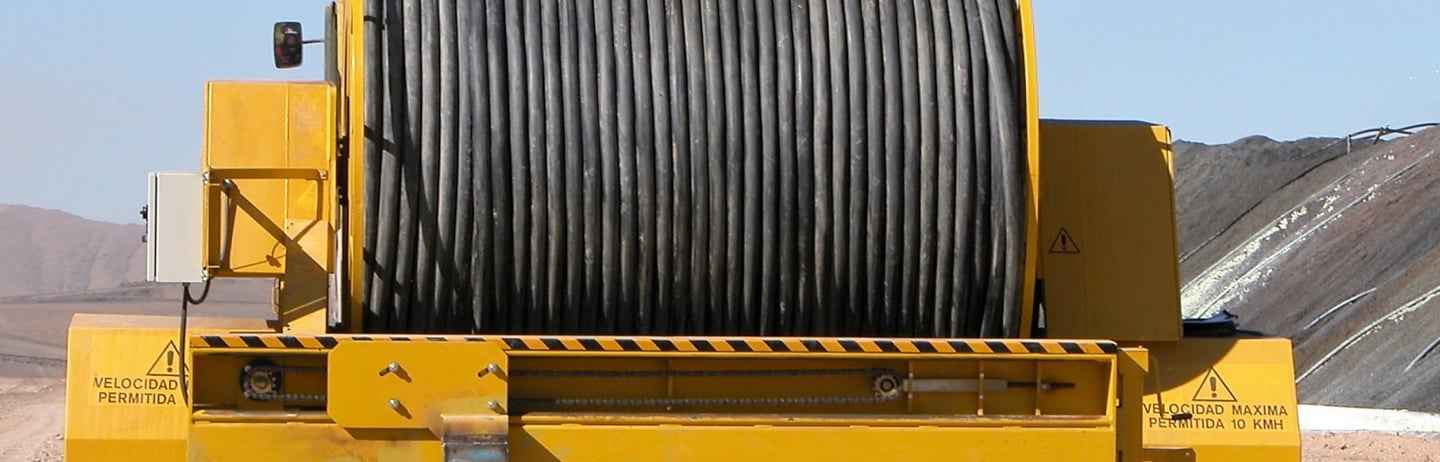

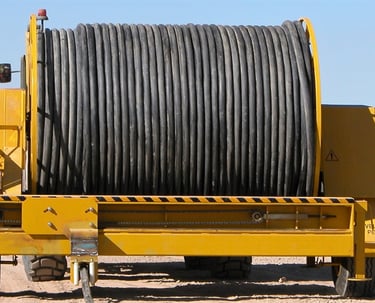

Reinforced reel cables for gantry cranes - withstand more than 100,000(reeling/unreeling) winding/unwinding cycles while maintaining all technical characteristics， with uncompromised performance

High-strength reel cables for heavy-duty equipment - the optimal solution for port cranes and container handling complexes.

Robust & Flexible: Crane Cable Gantry Crane Cables, Fearless of Frequent Bending & Tension

Ideal for Heavy-Duty Lifting: Excellent Tensile & Fatigue Resistance

AS/NZS 3000：0.6/1kV PUR-Sheathed Cable for Mobile Ship-to-Shore Connection – AS/NZS 3808 Compliant

Flexible Shore Power Reeling Cable for Port & Vessel Use

Key Features of Flexible Reeling Cable for Shore Connection (Type PROTOLON(SC) (N)TSKWOEU-J, 0.6/1kV) – Designed for Ship-to-Shore Power Supply Systems

This shore-connection cable is designed to meet the power requirements of vessels while docked. It offers several standout features that make it an excellent choice for ship-to-shore power connections:

Durable Construction: The cable is made with bare copper conductors that are finely stranded for maximum flexibility, allowing it to withstand the mechanical stresses encountered during docking and undocking.The insulation is made from high-quality EPR (Ethylene Propylene Rubber), which provides excellent electrical and mechanical properties.

Symmetrical Three-Core Design: This design ensures minimal electromagnetic interference (EMC), making it highly suitable for environments where power integrity is critical.

Tough Outer Sheath: The cable’s outer sheath is made from a high-grade rubber compound, which provides resistance to abrasion, tearing, oil, and weather. This makes it suitable for both outdoor and indoor use, ensuring durability even in the harshest conditions.

Control Cores: In addition to power conductors, the cable features control cores, allowing it to adapt to different types of vessels and their unique power control needs.

Safety Features: It meets stringent flame propagation standards (DIN EN 60332-1-2), ensuring that in case of fire, the cable won’t propagate flames, enhancing safety for the crew and the ship.

The PROTOLON(SC) (N)TSKWOEU-J 0,6/1kV is built according to DIN VDE 0250-813 standards and aligns with IEC/ISO/IEEE 80005-3, ensuring that it meets the global standards for shore-connection systems. This gives ship operators peace of mind, knowing that their electrical systems are powered safely and reliably.

Flexible Power Control：Thanks to its control cores, the PROTOLON(SC) cable can be tailored to meet the unique requirements of different types of vessels. Whether it’s a cargo ship, cruise liner, or specialized marine vessel, this cable provides flexible power delivery that can adapt to varying control requirements.

Maximum Durability：The inner sheath of the cable is made from a vulcanized rubber compound, which is not only flexible but also resistant to wear and tear. The outer sheath is equally tough, protecting the cable from harsh weather conditions, UV exposure, and mechanical damage.This makes the PROTOLON(SC) suitable for use in the most demanding port environments.

Resistance to Harsh Conditions：The outer sheath is resistant to oil, moisture, and UV radiation, ensuring that it can withstand prolonged exposure to harsh outdoor environments. In addition, the cable’s high flame resistance means that it is less likely to contribute to the spread of fire on board a vessel or in a port facility.

Exceptional Temperature Performance：The PROTOLON(SC) (N)TSKWOEU-J can operate in extreme temperature conditions, making it suitable for all climates—from the coldest arctic ports to the hottest tropical shores.With a maximum operating temperature of 90°C and the ability to handle short-circuit temperatures of up to 250°C, this cable is engineered to perform reliably under extreme conditions.

Chemical and Mechanical Resistance：The PROTOLON(SC) is not just tough on the outside; it’s designed to endure the internal stresses of ship-to-shore power transfer. With a tensile load capacity of 20 N/mm² and resistance to oil, ozone, and moisture, it’s a cable that performs under pressure.It’s also designed to handle the mechanical stresses of continuous use, making it a solid investment for port authorities and ship operators alike.

Installation Considerations：One of the advantages of the PROTOLON(SC) cable is its relatively simple installation. Thanks to its flexible design and stranded copper conductors, it can be easily maneuvered into place during installation.It’s also designed to be low maintenance, which reduces downtime and increases operational efficiency.

If you need a cable that can handle the demands of port and marine environments, while providing reliable performance, the PROTOLON(SC) is an excellent investment.Whether you’re a port operator or a shipowner, ensuring that your vessels receive a steady and safe power supply is crucial.
