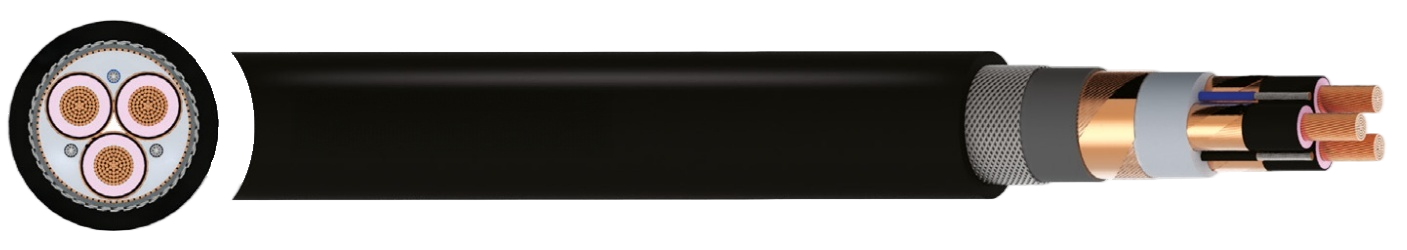

(N)3GHSSHCH LSZH Mining Cable (3.6/6kV & 6/10kV)
Flexible medium voltage solution for tunnelling and underground mining applications
$50.00
APPLICATION
Flexible cable for energy supply to MV equipment in tunnelling and underground mining applications. Low smoke zero halogen (LSZH) sheathed version. Suitable for indoor and outdoor applications.
STANDARDS
VDE 0250 Part 605, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2 Halogen Free according to IEC/EN 60754-1/2

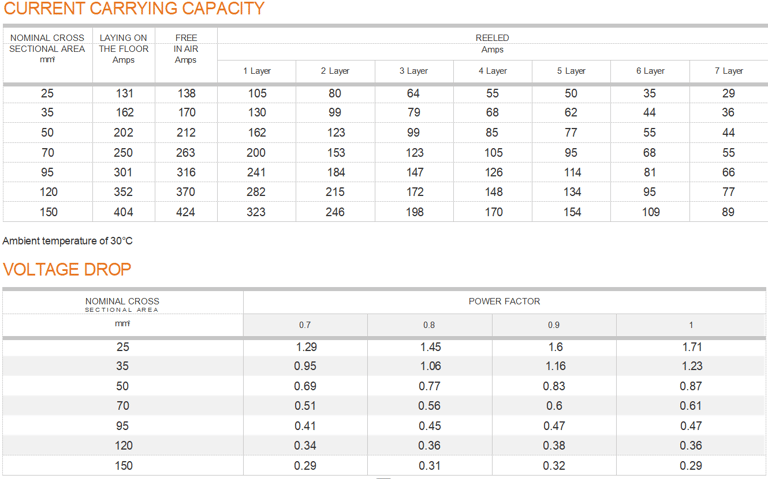

CHARACTERISTICS
Voltage Rating Uo/U
3.6/6kV | 6/10kV
Test Voltage
3.6/6kV: 11kV | 6/10kV: 17kV
Ambient Temperature
Fixed: -40°C to +80°C
Flexed: +5°C to +80°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 10 x overall diameter

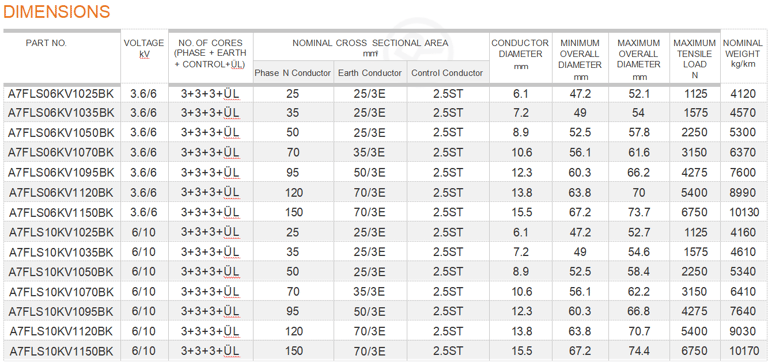

CONSTRUCTION
Phase Conductor
Class 5 copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper screen
Control Conductor
Class 5 tinned copper
Central Filler
Rubber compound on a textile polyester support
First Inner Sheath
LSZH (Low Smoke Zero Halogen)
Monitoring Conductor
Copper wire screen over the first inner sheath
Second Inner Sheath
LSZH (Low Smoke Zero Halogen)
Armour
Steel wire braid over the second inner sheath
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Black
