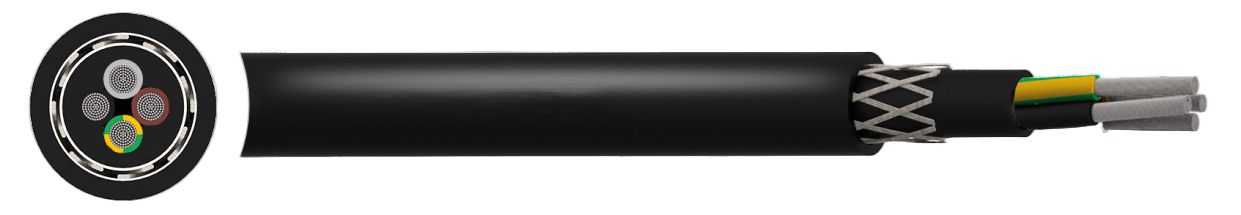

(N)SHTOU-O/J Heavy Duty Reel Cable
0.6/1kV PUR sheathed for crane systems, mining and tunnelling equipment
$15.00
APPLICATION Flexible cable designed for power and signalling mobile connections, under severe mechanical stresses (tensile strength and torsion), for heavy duty conditions, abrasion and crushing. The cable is typically used in cable winding reels for harbour cranes, container cranes, conveyors, handling machines and mining and tunnelling equipment. The halogen free polyurethane sheath grants more lightness by retaining the mechanical properties and abrasion resistance. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 4kV Maximum Torsional Stress: ± 25°/m Maximum Tensile Load: 30N/mm2 Maximum Working Speed: 180m/min Temperature Rating Flexing: -40°C to 90°C Flexed: -50°C to 90°C Minimum Bending Radius Fixed: 4 x overall diameter Flexing: 5 x overall diameter |
CONSTRUCTION
Conductor
Class 5 Flexible Tinned Copper Insulation
Rubber compound Inner Sheath
Halogen free PUR (Polyurethane)
Antitwisting Element Polyester Braid
Outer Sheath
Halogen free PUR (Polyurethane) Core Identification
3 Core: e Green/Yellow ● Blue ● Brown
4 Core: e Green/Yellow ● Brown ● Black ● Grey
5 Core: e Green/Yellow ● Blue ● Brown ● Black Grey Note:
(N)SHTÖU-O is available without a Green/Yellow core Outer Sheath Colour
● Black
STANDARDS
Based on VDE 0240 Part 814, VDE 0295, IEC 60228, VDE
0250, VDE 0293, VDE 0207, VDE 0298, IEC 60811-404,
IEC 60811-403, ISO 4892-2,
Flame Retardant according to IEC/EN 60332-1-2 Special Test: Reeling test
