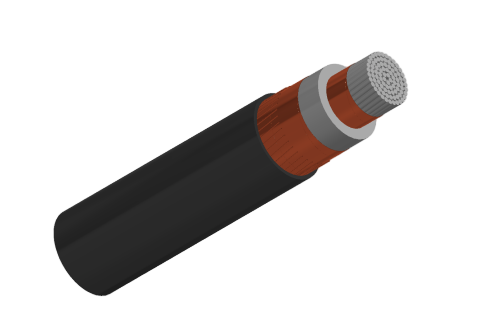

19/33kV Single Core Screened & PVC Sheathed (Al Conductor)
Standard AS/NZS 1429.1
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

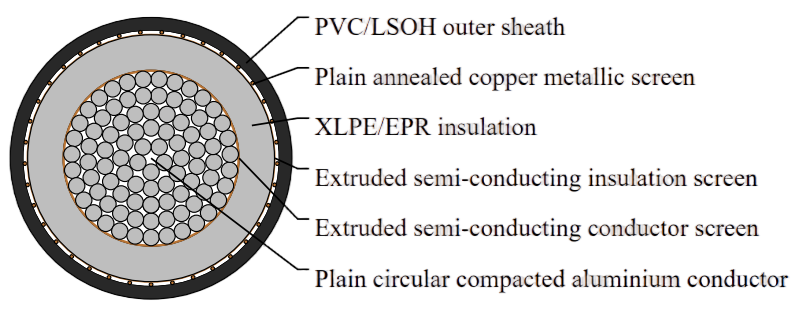

Cable Construction
CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
METALLIC SCREEN: Plain annealed copper wire: 10kA for nominal 1 second
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Cable Parameter

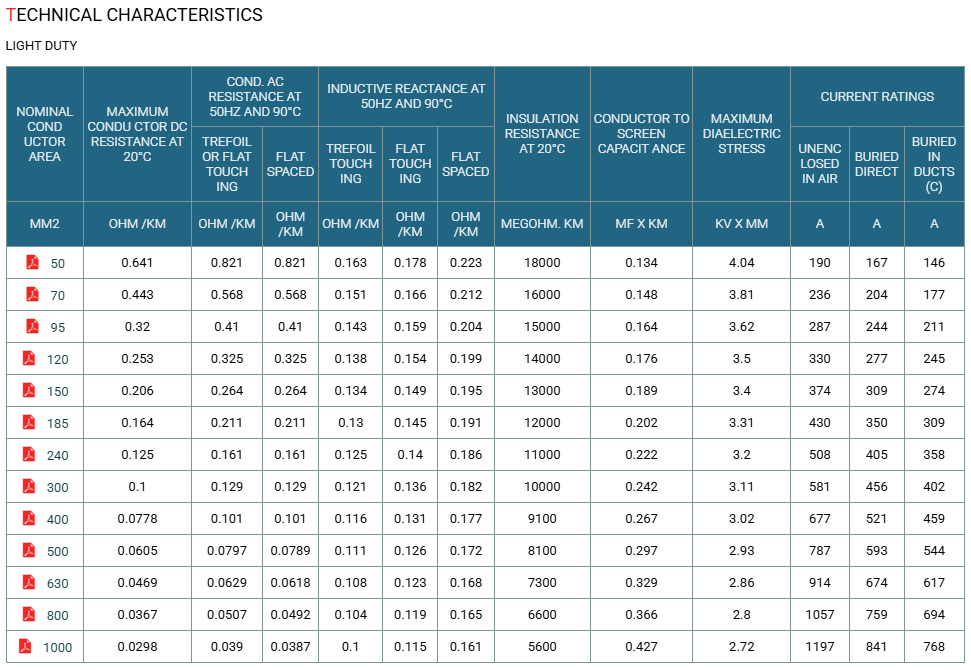

LIGHT DUTY
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON EACH CORE | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. OVERALL DIAMETER | APPROX. MASS |
|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | KG/100M |
50 | 8.1 | 8 | 25.6 | 20 | 36 x 0.85 | 26.1 | 32.3 | 103 |
70 | 9.6 | 8 | 27.2 | 20 | 36 x 0.85 | 27.6 | 33.8 | 114 |
95 | 11.4 | 8 | 28.9 | 20 | 36 x 0.85 | 29.3 | 35.7 | 128 |
120 | 12.8 | 8 | 30.3 | 20 | 36 x 0.85 | 30.7 | 37.1 | 140 |
150 | 14.2 | 8 | 31.7 | 20 | 36 x 0.85 | 32.1 | 38.7 | 154 |
185 | 15.7 | 8 | 33.2 | 20 | 36 x 0.85 | 33.8 | 40.4 | 171 |
240 | 18 | 8 | 35.5 | 20 | 36 x 0.85 | 36.2 | 43 | 197 |
300 | 20.1 | 8 | 37.8 | 20 | 36 x 0.85 | 38.2 | 45.2 | 223 |
400 | 23 | 8 | 40.7 | 20 | 36 x 0.85 | 41.3 | 48.6 | 261 |
500 | 26.5 | 8 | 44.2 | 20 | 36 x 0.85 | 44.4 | 51.9 | 304 |
630 | 29.9 | 8 | 48 | 20 | 36 x 0.85 | 48 | 55.7 | 358 |
800 | 34.2 | 8 | 52.3 | 20 | 36 x 0.85 | 52.6 | 60.5 | 428 |
1000 | 40.2 | 8 | 59.5 | 21 | 37 x 0.85 | 56.7 | 64.6 | 505 |
Cable Parameter

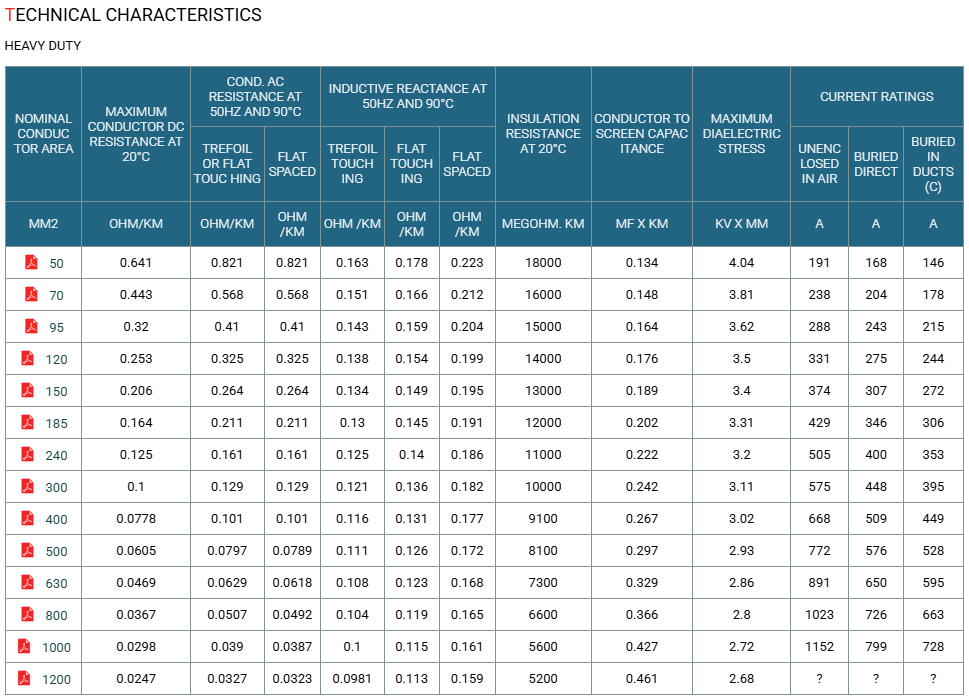

HEAVY DUTY
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON EACH CORE | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. OVERALL DIAMETER | APPROX. MASS |
|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | KG/100M |
50 | 8.1 | 8 | 25.6 | 32.9 | 23 x 1.35 | 29.9 | 34.4 | 125 |
70 | 9.6 | 8 | 27.2 | 45.8 | 32 x 1.35 | 31.5 | 36.2 | 150 |
95 | 11.4 | 8 | 28.9 | 61.5 | 43 x 1.35 | 33.2 | 37.9 | 180 |
120 | 12.8 | 8 | 30.3 | 68.7 | 48 x 1.35 | 34.6 | 39.5 | 200 |
150 | 14.2 | 8 | 31.7 | 68.7 | 48 x 1.35 | 36.2 | 41.1 | 215 |
185 | 15.7 | 8 | 33.2 | 68.7 | 48 x 1.35 | 37.7 | 42.8 | 230 |
240 | 18 | 8 | 35.5 | 68.7 | 48 x 1.35 | 40 | 45.1 | 255 |
300 | 20.1 | 8 | 37.8 | 68.7 | 48 x 1.35 | 42.3 | 47.8 | 285 |
400 | 23 | 8 | 40.7 | 68.7 | 48 x 1.35 | 45.2 | 50.9 | 320 |
500 | 26.5 | 8 | 44.2 | 68.7 | 48 x 1.35 | 48.7 | 54.6 | 370 |
630 | 29.9 | 8 | 48 | 68.7 | 48 x 1.35 | 52.5 | 58.6 | 430 |
800 | 34.2 | 8 | 52.3 | 68.7 | 48 x 1.35 | 56.8 | 63.4 | 500 |
1000 | 40.2 | 8 | 59.5 | 68.7 | 48 x 1.35 | 64 | 70.8 | 600 |
1200 | 43.8 | 8 | 63.5 | 68.7 | 48 x 1.35 | 68 | 75 | 680 |
