2-, 3-, 4-, 5-, multicores CU/PVC/PVC/SWA/PVC,PVC insulated, PVC bedded, SWA armoured, PVC sheathed Cable 0.6/1kV

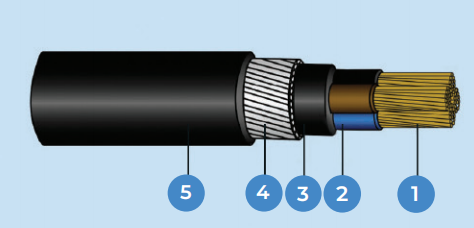

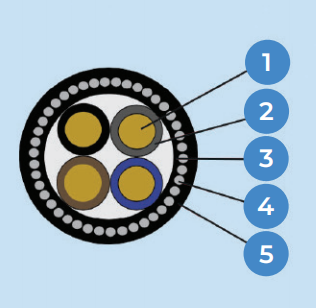

Component:1. Copper Conductor 2. PVC Insulation 3. PVC Bedding 4. Galvanised Steel Wire Armoured 5. PVC/PVC-FR** sheath
$20.00
Standards Applied Design Guide: BS6346, MS274 Conductor: IEC60228, BS6360, BS EN 60228 Flame Retardancy: IEC60332-1-2, IEC60332-3-24**, IEC60332-3-22** Installation Guide Min. bending radius (mm) : 10 x Cable Overall Diameter Max. pulling tension (kgf) : 7 x No. of Core x Conductor Size | Electrical Characteristics Operating voltage, Uo/U: 600/1000V Max. operating temperature: 70°C Final short circuit temperature: 160°C Test voltage: 3.5kV for 5 minutes |
Construction | |
Conductor | Plain annealed copper wire |
Insulation Core Identification Assembly Bedding | An extruded layer of polyvinyl chloride (PVC) compound Refer to Appendix F for details Cores cabled together, supplied with filler* and covered with polyester (PETP) binder tape* An extruded layer of polyvinyl chloride (PVC) compound |
Bedding Colour Armour Outer Sheath Outer Sheath Colour | Black A single layer of galvanised steel wire armour (SWA) An extruded layer of polyvinyl chloride (PVC) compound Black |
