2-, 3-, 4-, 5-, Multicores, CU/XLPE/LSHF/SWA/LSHF XLPE insulated, LSHF bedded, SWA armoured, LSHF sheathed Cable 0.6/1kV

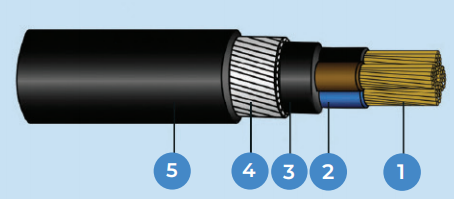

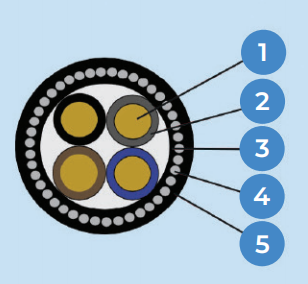

Component:1. Copper Conductor 2. XLPE Insulation 3. LSHF Bedding 4. Galvanised Steel Wire Armoured 5. LSHF Sheath
$8.00
Standards Applied Design Guide: BS6724, IEC60502-1 Conductor: IEC60228, BS6360, BS EN 60228 Flame Retardancy: IEC60332-1-2, IEC60332-3-22 Low Smoke & Reduced Toxidity : IEC60754-1/2, IEC61034-2
Installation Guide Min. bending radius (mm): 10 x Cable Overall Diameter Max. pulling tension (kgf): 7 x No. of Core x Conductor Size | Electrical Characteristics Operating voltage, Uo/U: 600/1000V Max. operating temperature: 90°C Final short circuit temperature: 250°C Test voltage: 3.5kV for 5 minutes |
Construction | |
Conductor | Plain annealed copper wire |
Insulation Core Identification Assembly Bedding | An extruded layer of cross-linked polyethylene (XLPE) compound Refer to Appendix F for details Cores cabled together, supplied with filler* and covered with polyester (PETP) binder tape* An extruded layer of low smoke halogen free (LSHF) compound |
Bedding Colour Armour Outer Sheath Outer Sheath Colour | Black A single layer of galvanised steel wire armour (SWA) An extruded layer of low smoke halogen free (LSHF) compound Black |
