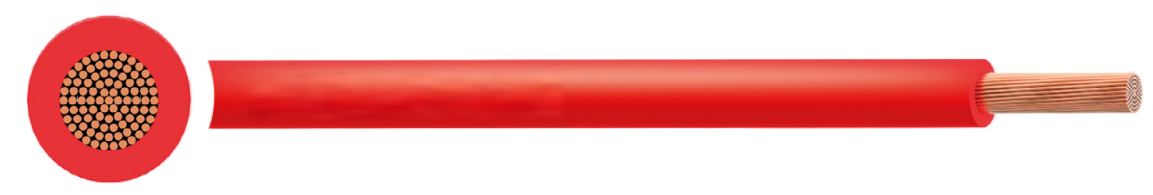

2491B / 6701B - H05Z-K / H07Z-K EN 50525-3-41 LSZH Cable
Safe Panel Wiring Solution with Low Smoke, Zero Halogen for Enhanced Fire Protection
$1.00
APPLICATION LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed. |
CHARACTERISTICS Voltage Rating Uo/U H05Z-K - 0.5mm² to 1mm²: 300/500V H07Z-K - 1.5mm² to 240mm²: 450/750V Temperature Rating -25°C to +90°C Minimum Bending Radius Up to 35mm2 : 4 x overall diameter 50mm2 and above: 6 x overall diameter |
CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
LSZH (Low Smoke Zero Halogen)
Insulation Colour
Red Black Blue Orange White Yellow
Green/Yellow Grey Brown Violet Pink
