2XSL(st)CH LSZH Cable
Suitable for outdoor application (direct burial not recommended), and for use on tray or in trunking.
APPLICATION
Double screened low capacitance motor supply cable for frequency converters. The screen protects against external interference pulses and ensures an interference-free transmission. Suitable for outdoor application (direct burial not recommended), and for use on tray or in trunking.
CHARACTERISTICS
Voltage Rating
0.6/1kV
Temperature Rating
Fixed: -30°C to +80°C
Flexed: -5°C to +40°C
Minimum Bending Radius
Fixed: 7.5 x overall diameter
Flexed: 15 x overall diameter

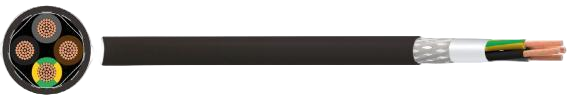

CONSTRUCTION
Conductor
Class 5 flexible plain copper
Insulation
XLPE (Cross-linked Polyethylene)
Separator
PET (Polyester Tape)
Screen 1
Al/PET (Aluminium Polyester Tape)
Screen 2
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Green/Yellow Brown Black Grey
Sheath Colour
● Black
