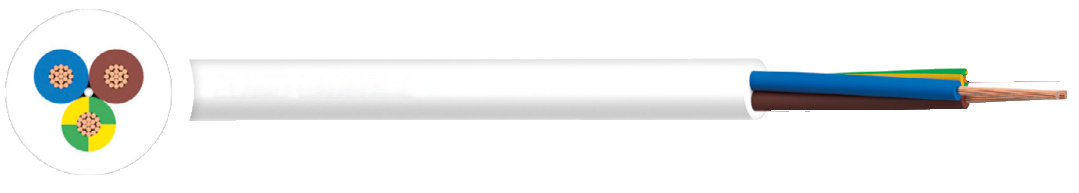

318-B LSZH / H05Z1Z1-F EN 50525-3-11 Flexible Cable
Flexible Indoor Wiring Cable for Safe Use in Public Buildings and High-Risk Areas
$3.00
APPLICATION
Used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects. For installation where fire, smoke emission and toxic fumes create a potential risk to life and equipment.
CHARACTERISTICS
Voltage Rating (Uo/U) 300/500V
Temperature Rating
+5°C to +70°C
Minimum Bending Radius
5 x overall diameter
CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
LSZH (Low Smoke Zero Halogen) Type TI6
Sheath
LSZH (Low Smoke Zero Halogen) Type TM7
Core Identification
2 core: Blue Brown
3 core: Green/Yellow
4 core: Green/Yellow
5 core: Green/Yellow
Sheath Colour
White ● Black
