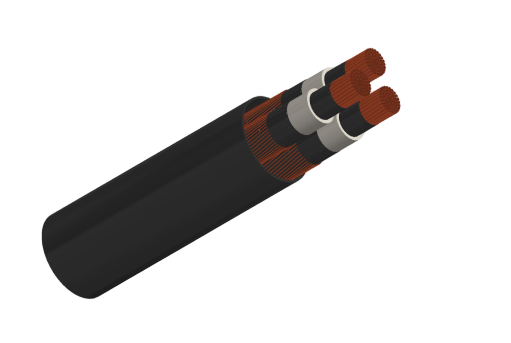

3.8/6.6kV Three Core Individual Screened & PVC Sheathed (Cu Conductor)
Standard AS/NZS 1429.1
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

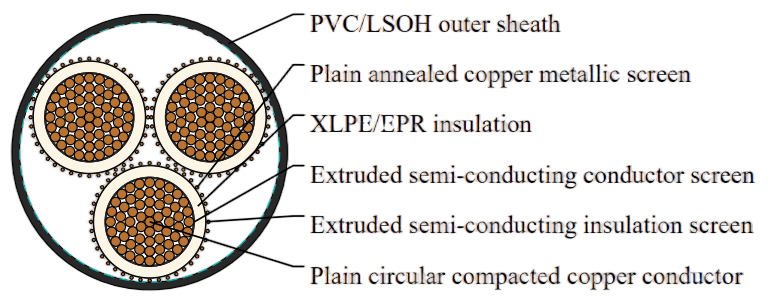

Cable Construction
CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Extruded semi-conducting compound
METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper ire: 10kA for nominal 1 second(HEAVY DUTY)
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Cable Parameter

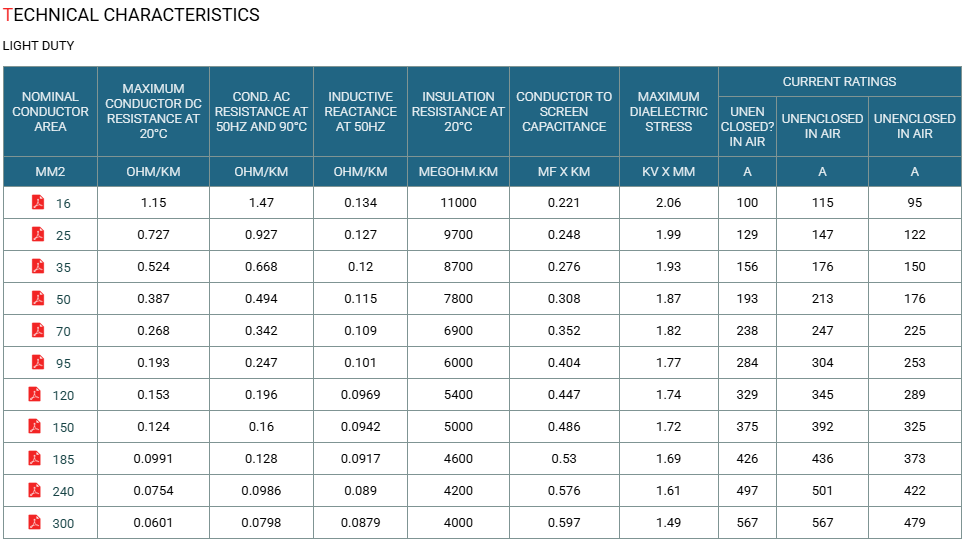

LIGHT DUTY
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON EACH CORE | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. OVERALL DIAMETER | APPROX. MASS |
|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | KG/100M |
16 | 4.8 | 2.5 | 11 | 5.7 | 9 x 0.85 | 12.4 | 34.6 | 120 |
25 | 5.8 | 2.5 | 12 | 6.2 |
| 13.6 | 37.3 | 154 |
35 | 6.8 | 2.5 | 13 | 6.8 |
| 14.5 | 39.5 | 190 |
50 | 8 | 2.5 | 14.1 | 6.8 |
| 15.6 | 42.1 | 231 |
70 | 9.6 | 2.5 | 15.7 | 7.9 |
| 17.3 | 45.9 | 302 |
95 | 11.5 | 2.5 | 17.6 | 8.5 |
| 18.9 | 49.6 | 387 |
120 | 13.1 | 2.5 | 19.2 | 9.1 |
| 20.5 | 53.2 | 467 |
150 | 14.5 | 2.5 | 20.6 | 9.6 |
| 21.9 | 56.4 | 554 |
185 | 16.1 | 2.5 | 22.2 | 10.2 |
| 23.5 | 60.1 | 669 |
240 | 18.5 | 2.6 | 24.9 | 10.8 |
| 26.1 | 66.2 | 859 |
300 | 20.7 | 2.8 | 27.6 | 11.9 |
| 29.0 | 72.7 | 1059 |
Cable Parameter

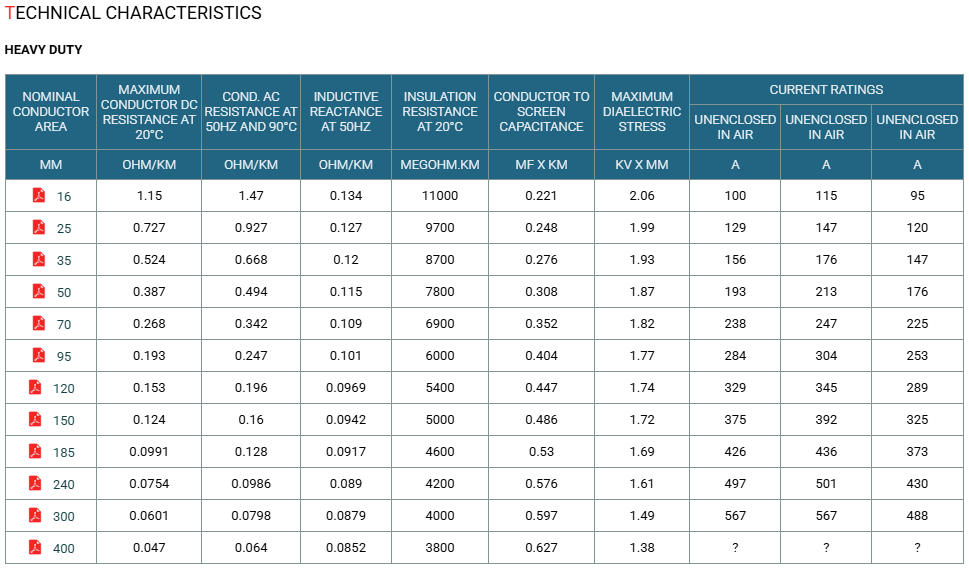

HEAVY DUTY
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON EACH CORE | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. OVERALL DIAMETER | APPROX. MASS |
|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | KG/100M |
16 | 4.8 | 2.5 | 11 | 5.7 | 10 x 0.85 | 14.3 | 35.6 | 130 |
25 | 5.8 | 2.5 | 12 | 8.5 | 15 x 0.85 | 15.3 | 37.9 | 170 |
35 | 6.8 | 2.5 | 13 | 11.3 | 20 x 0.85 | 16.3 | 40.3 | 215 |
50 | 8 | 2.5 | 14.1 | 16.5 | 29 x 0.85 | 17.4 | 43 | 275 |
70 | 9.6 | 2.5 | 15.7 | 22.7 | 40 x 0.85 | 19 | 46.7 | 360 |
95 | 11.5 | 2.5 | 17.6 | 22.7 | 40 x 0.85 | 20.9 | 51.1 | 455 |
120 | 13.1 | 2.5 | 19.2 | 22.7 | 40 x 0.85 | 22.5 | 54.8 | 545 |
150 | 14.5 | 2.5 | 20.6 | 22.7 | 40 x 0.85 | 23.9 | 58.2 | 630 |
185 | 16.1 | 2.5 | 22.2 | 22.7 | 40 x 0.85 | 25.5 | 61.8 | 735 |
240 | 18.5 | 2.6 | 24.9 | 22.7 | 40 x 0.85 | 28.2 | 67.9 | 930 |
300 | 20.7 | 2.8 | 27.6 | 22.7 | 40 x 0.85 | 30.9 | 74.3 | 1130 |
400 | 23.6 | 3 | 30.9 | 22.7 | 40 x 0.85 | 34.2 | 81.8 | 1440 |
