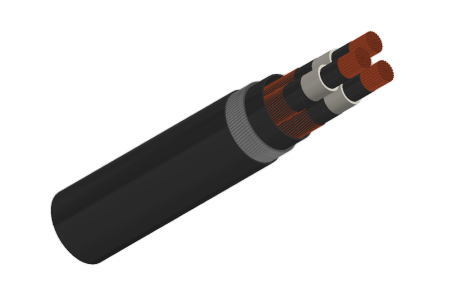

3.8/6.6kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Cu Conductor)
Standard AS/NZS 1429.1
Cable Parameter
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON CORES | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. DIAMETE OVER BEDDING | NOM. DIAMETE OF ARMOUR | NOM. DIAMETE OVER ARMOUR | NOM. OVERALL DIAMETER | ? APPROX. MASS |
|---|---|---|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | MM | MM | MM | KG/100M |
16 | 4.8 | 2.5 | 11 | 17 | 10 x 0.85 | 14.3 | 34 | 2 | 38 | 42.6 | 295 |
25 | 5.8 | 2.5 | 12 | 25.5 | 15 x 0.85 | 15.3 | 36.1 | 2 | 40.1 | 44.9 | 345 |
35 | 6.8 | 2.5 | 13 | 34 | 20 x 0.85 | 16.3 | 38.5 | 2.5 | 43.5 | 48.7 | 440 |
50 | 8 | 2.5 | 14.1 | 49.4 | 29 x 0.85 | 17.4 | 41 | 2.5 | 46 | 51.4 | 515 |
70 | 9.6 | 2.5 | 15.7 | 68.1 | 40 x 0.85 | 19 | 44.6 | 2.5 | 49.6 | 55.2 | 630 |
95 | 11.5 | 2.5 | 17.6 | 68.1 | 40 x 0.85 | 20.9 | 48.9 | 2.5 | 53.9 | 59.7 | 745 |
120 | 13.1 | 2.5 | 19.2 | 68.1 | 40 x 0.85 | 22.5 | 52.3 | 2.5 | 57.3 | 63.3 | 850 |
150 | 14.5 | 2.5 | 20.6 | 68.1 | 40 x 0.85 | 23.9 | 55.7 | 2.5 | 60.7 | 66.9 | 960 |
185 | 16.1 | 2.5 | 22.2 | 68.1 | 40 x 0.85 | 25.5 | 59.4 | 2.5 | 64.4 | 70.8 | 1090 |
240 | 18.5 | 2.6 | 24.9 | 68.1 | 40 x 0.85 | 28.2 | 65.3 | 3.15 | 71.6 | 78.6 | 1410 |
300 | 20.7 | 2.8 | 27.6 | 68.1 | 40 x 0.85 | 30.9 | 71.4 | 3.15 | 77.7 | 85.2 | 1660 |
400 | 23.6 | 3 | 30.9 | 68.1 | 40 x 0.85 | 34.2 | 78.8 | 3.15 | 85.1 | 92.9 | 2030 |

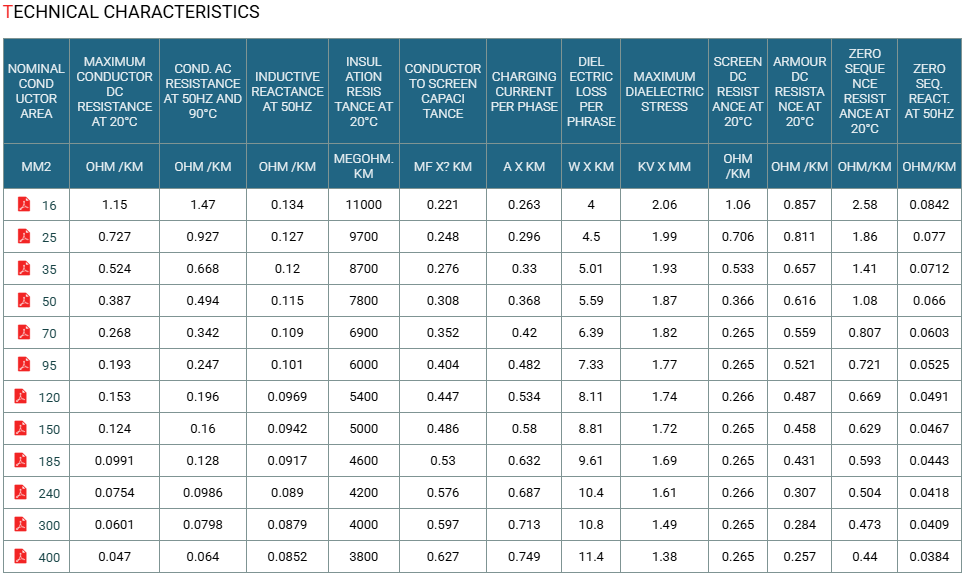

Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

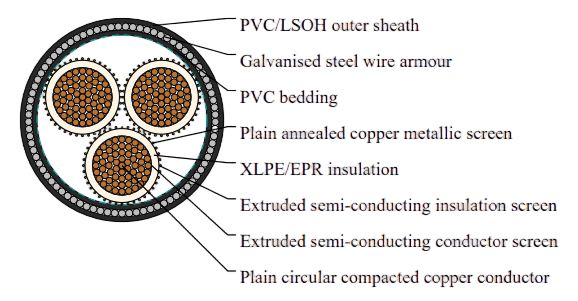

Cable Construction
CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Extruded semi-conducting compound
METALLIC SCREEN: Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
BEDDING: PVC
ARMOURING: Galvanised steel wires
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
