BS 6724 Multi Core SWA Cable (1.9/3.3kV)
Steel wire armoured medium voltage cable for fire-safe power networks
$20.00
APPLICATION
Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U
1.9/3.3kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter

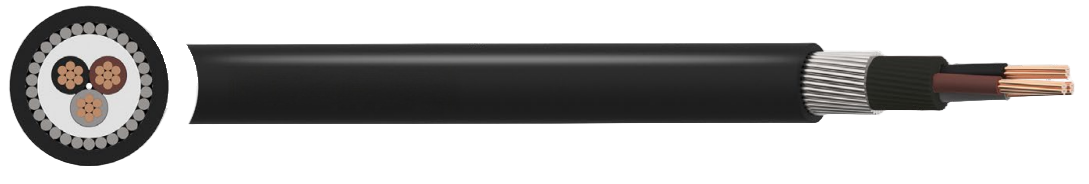

CONSTRUCTION
Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Armour
SWA (Galvanised Steel Wire Armour)
Outer Sheath
HFFR (Halogen free flame retardant)
Core Identification
Brown
Black
Grey
Sheath Colour
● Black
