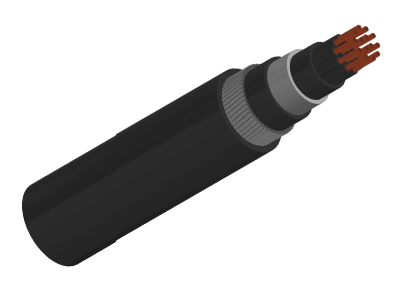

600V/1000V XLPE Insulated Steel Wire Armored Cable to IEC 60502-1 with Lead Cover
Cable
Applications
These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where require hydrocarbon and mechanical protections. The lead sheath brings an enhanced resistance to aliphatic and aromatic hydrocarbon.

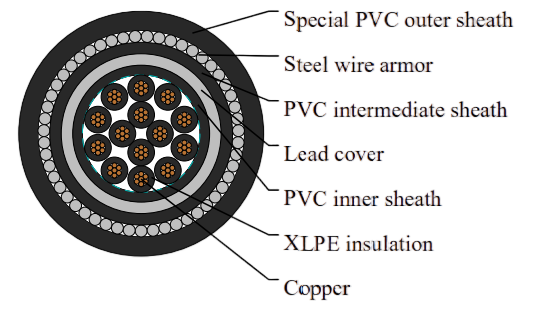

Construction
Conductor : Solid or stranded copper
Insulation : XLPE
Core identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores : Red, Yellow, Blue
4 Cores : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 cores : Black core printed with white numbers
Inner sheath : PVC
Lead cover
Intermediate sheath : PVC
Armor : Galvanized steel wires or aluminium wires for 1 core cable
Sheath : Special PVC. Color: black
Properties
Rated voltage : 600V/1000V
Fire retardance : IEC 60332-3-22
Operating temperature : -20~60°C
Max. conductor operating temperature : 90°C
Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
