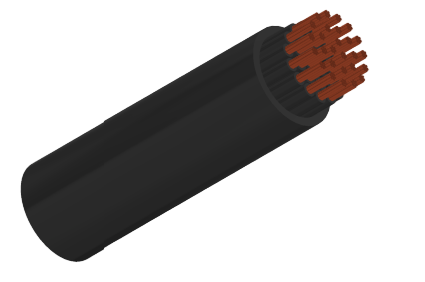

600V/1000V XLPE Insulated Unarmored Cable to IEC 60502-1
Cable
Applications
These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where chemicals may be present.

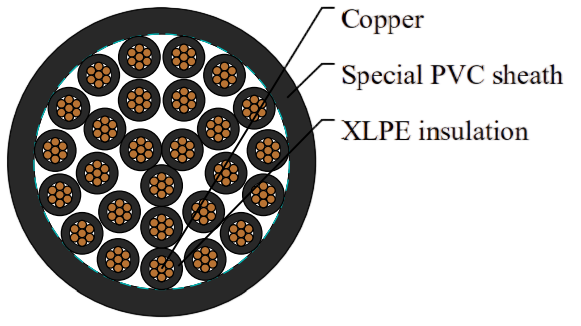

Construction
Conductor : Solid or stranded copper
Insulation : XLPE
Core identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores : Red, Yellow, Blue
4 Cores : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 cores : Black core printed with white numbers
Sheath : Special PVC. Color : black
Properties
Rated voltage : 600V/1000V
Fire retardance : IEC 60332-3-22
Operating temperature : -20~60°C
Max. conductor operating temperature : 90°C
Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
