602-HF-CY-J PVC Flexible Screened Cable: Durable Drag Chain Solution for High-Motion and Outdoor Applications

Introduction: Meet the Go-To Cable for Demanding Motion Applications

In modern machine shops and automated production facilities where cables endure constant flexing, lifting, and weather exposure, equipment reliability hinges on components that can withstand extreme mechanical stress. Picture a CNC machining center operating outdoors, its drag chain system cycling thousands of times daily while exposed to rain, UV radiation, and temperature fluctuations. In such demanding environments, the 602-HF-CY-J PVC flexible screened cable excels as a purpose-built solution designed specifically for high-motion industrial applications.

This highly flexible drag chain cable features extra-fine stranded copper conductors conforming to Class 6 specifications per DIN VDE 0295 and IEC 60228 standards, ensuring maximum flexibility without compromising electrical performance. The special PVC insulation and outer sheath meet rigorous UL-Std. 1581 requirements, while a tinned copper braided screen provides approximately 85% coverage for effective electromagnetic interference (EMI) shielding. The distinctive orange sheath color (RAL 2003) complies with DESINA standards, making cable identification straightforward during installation and maintenance.

What sets this screened PVC power cable apart is its comprehensive resistance profile and environmentally conscious construction. The cable withstands UV radiation and weathering effects while remaining largely resistant to oil contamination—critical properties for outdoor industrial installations. Furthermore, the manufacturing process employs cadmium-free materials containing no silicone, ensuring the cable won't interfere with lacquer wetting properties in painted equipment enclosures or compromise environmental safety standards.

Robust Temperature and Voltage Ratings for Versatile Performance

The 602-HF-CY-J PVC cable delivers exceptional performance across an impressive temperature spectrum, accommodating both flexible installation applications from -5°C to +90°C and fixed installations in even harsher conditions ranging from -40°C to +90°C. The conductor itself maintains safe operation at temperatures up to +90°C, providing substantial thermal headroom for continuous duty cycles in demanding industrial environments.

From an electrical standpoint, this flexible PVC screened cable offers robust voltage ratings that satisfy both European and North American standards. The VDE nominal voltage rating of 600/1000V AC (U0/U) aligns with UL AWM Style 10107's 600V AC specification and CSA C22.2 No. 210 requirements. These certifications ensure the cable meets stringent safety standards across international markets. The design includes a 4000V test voltage and impressive 8000V breakdown voltage, providing substantial safety margins that protect against electrical faults and transient overvoltages common in industrial power distribution systems.

The minimum bending radius specifications—7.5 times the outer diameter for flexible applications and 3 times for fixed installations—enable this cable to navigate tight routing paths within drag chain systems without degrading performance or service life. These generous bending characteristics prove ideal for frequent motion applications where cables must repeatedly flex without developing conductor fatigue or insulation cracking. In CNC machines, robotic welding cells, and automated material handling systems where cables undergo thousands of bend cycles daily, these specifications translate directly into reduced maintenance costs and extended operational uptime.

Cable Structure: Engineered for Durability and EMC Compliance

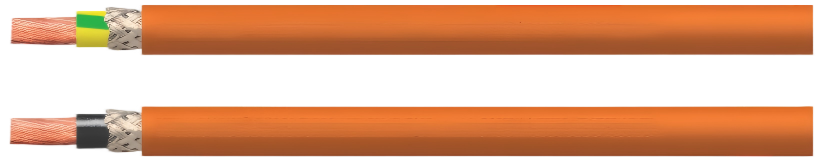

The internal architecture of the 602-HF-CY-J PVC reflects careful engineering focused on mechanical resilience and electromagnetic compatibility. At the core, bare copper conductors employ extra-fine stranding conforming to Class 6 specifications, which represents the finest standard stranding classification. This construction uses numerous thin copper wires twisted together, creating exceptional flexibility compared to coarser stranding classes. Available in cross-sections ranging from 10mm² to 300mm² (approximately AWG 8 to 550 kcmil), the conductor sizes accommodate power requirements from light-duty control circuits to substantial motor feeders.

Each conductor receives special PVC insulation engineered to UL-Std. 1581 specifications, providing reliable electrical isolation while maintaining flexibility through repeated bending cycles. The cable offers two core identification options: versions with a green-yellow protective conductor (designated "G" in the part numbering) or versions without this earth connection (designated "x"). This flexibility allows system designers to select the appropriate grounding configuration for their specific application requirements.

The screening layer comprises a braided shield of tinned copper wires achieving approximately 85% optical coverage. This substantial coverage ratio effectively intercepts electromagnetic interference, preventing external electrical noise from coupling into signal conductors while simultaneously containing electromagnetic emissions generated by power-carrying cores. For optimal electromagnetic compatibility performance in sensitive installations, engineers should ensure double-sided grounding connections with large contact areas between the braided screen and grounding points. This practice minimizes ground loop impedances and maximizes shielding effectiveness across broad frequency ranges.

The outer sheath utilizes PVC compound type YM5 conforming to DIN VDE 0207-5 standards, formulated to resist UV radiation and weathering while providing mechanical protection against abrasion in drag chain applications. Sequential meter markings molded into the sheath facilitate accurate cable length verification during installation, eliminating measurement errors and reducing material waste during field terminations.

Key Properties: Built to Withstand Harsh Conditions

The 602-HF-CY-J PVC demonstrates exceptional environmental resilience through multiple resistance characteristics essential for reliable outdoor operation. UV resistance tested according to DIN EN ISO 4892-2 ensures the orange PVC sheath withstands prolonged sunlight exposure without degradation, chalking, or color fading. Similarly, weather resistance testing per the same standard confirms the cable maintains electrical and mechanical integrity through cycles of rain, humidity, temperature variation, and atmospheric pollutants.

The cable's oil resistance proves particularly valuable in manufacturing environments where hydraulic fluid leaks or cutting oil mist may contact cable assemblies. While not completely impervious to petroleum products, the formulation provides substantial protection against incidental oil exposure common in machine tool environments. This characteristic extends service life significantly compared to standard PVC cables that may swell or soften when contacted by industrial lubricants.

Material composition receives equal attention to performance characteristics. The complete absence of cadmium—a toxic heavy metal restricted under environmental regulations—ensures compliance with RoHS directives and similar environmental legislation worldwide. The silicone-free formulation prevents contamination issues in painted equipment where silicone compounds can migrate onto surfaces, creating defects in subsequently applied coatings. Additionally, the materials remain free from substances that interfere with lacquer wetting properties, making the cable suitable for installation in equipment requiring high-quality painted finishes.

Flame retardant properties meeting DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2, UL VW-1, and CSA FT1 standards prevent fire propagation along cable runs. In the event of exposure to external flame sources, the specially formulated PVC self-extinguishes rather than supporting continued combustion, enhancing personnel safety and limiting fire damage in industrial facilities.

Ideal Applications: From Machine Tools to Outdoor Automation

The 602-HF-CY-J PVC finds its primary application as a highly flexible single core cable for drag chain systems operating in dry rooms, damp environments, and fully outdoor installations. The cable particularly excels in scenarios involving free movement without tensile stress or forced guidance constraints. Unlike cables designed for continuous pulling forces or applications with mechanical guides dictating cable path, this design optimizes flexibility for situations where the cable naturally follows the motion of equipment components.

Machine tool construction represents a core application domain. CNC machining centers, lathes, milling machines, and grinding equipment frequently incorporate moving tables, spindles, or tool changers requiring power delivery through flexible cable assemblies. The cable's resistance to oil mist, metal working fluids, and frequent bending makes it ideal for these demanding environments where equipment motion occurs continuously throughout production shifts.

Automated material handling systems including robotic pick-and-place units, conveyor transfers, and packaging machinery benefit from the cable's lift-and-bend capabilities. In these applications, cables must accommodate repetitive vertical motion combined with lateral displacement as robotic arms, gantries, or cross-transfer mechanisms cycle through programmed movements. The generous bending radius specifications and Class 6 stranding prevent conductor fatigue that would otherwise lead to premature failure.

Outdoor automation installations—such as agricultural equipment, car wash systems, or outdoor conveyor networks—leverage the cable's UV and weather resistance. The combination of environmental resilience and mechanical flexibility creates a versatile solution for applications where both climatic exposure and dynamic motion present simultaneous challenges.

Regarding electromagnetic compatibility, installations near sensitive electronic controls or measurement equipment benefit significantly from proper screening implementation. To optimize EMC performance, engineers should establish comprehensive grounding by connecting the tinned copper braid to ground potential at both cable ends with large-area, low-impedance connections. This double-sided grounding technique, combined with the 85% coverage ratio, effectively contains electromagnetic emissions from power conductors while shielding against external interference that could disrupt precision control systems or data acquisition circuits.

Common Cable Challenges and Practical Solutions

Question: What causes premature cable failure in drag chain applications, and how does the 602-HF-CY-J PVC address these issues?

Drag chain cable failures typically stem from three primary mechanisms: conductor strand breakage due to repeated flexing, insulation cracking from insufficient flexibility, and sheath abrasion from contact with drag chain components. The 602-HF-CY-J PVC specifically addresses each failure mode through targeted design features.

Class 6 extra-fine stranding distributes mechanical stress across numerous thin copper wires rather than fewer thick strands, dramatically reducing stress concentration on individual conductors during bending. This fine stranding allows each wire to shift slightly relative to its neighbors during flex cycles, preventing the work-hardening and eventual fracture that coarser strandings experience. The special PVC insulation formulation maintains elasticity through temperature extremes and millions of bend cycles, resisting the embrittlement and cracking that claim standard PVC cables prematurely. Finally, the robust outer sheath formulated to YM5 compound specifications provides excellent abrasion resistance against the interior surfaces of drag chain links, protecting internal components from mechanical damage.

Question: How should the braided screen be terminated to achieve optimal electromagnetic shielding?

Effective EMC performance requires thoughtful attention to screen termination technique. Simply connecting the braid at one end provides minimal shielding against low-frequency magnetic fields and creates opportunities for ground loops to inject noise. Instead, establish solid mechanical and electrical contact between the braided screen and grounding points at both cable ends.

Use circular cable glands with 360-degree braid contact rather than pig-tail connections that concentrate current through small wire cross-sections. Ensure grounding connections extend around the full cable circumference, creating maximum surface area contact. This approach minimizes transfer impedance—the resistance through which interference currents must flow to reach ground—thereby improving shielding effectiveness across the entire frequency spectrum from power-line harmonics through high-frequency radiated emissions. In particularly sensitive installations, consider supplementing the factory-provided 85% coverage with additional grounding straps or conductive cable supports that maintain screen continuity throughout the cable route.

Question: Can this cable handle occasional moisture exposure, or does it require completely dry environments?

The 602-HF-CY-J PVC explicitly permits use in damp rooms and outdoor applications, indicating substantial moisture resistance. However, "damp" differs significantly from "wet" or "submerged" conditions. The cable withstands rain, condensation, humidity, and occasional water spray without degradation. The PVC sheath provides effective moisture barrier properties, preventing water ingress into the cable core under normal outdoor exposure conditions.

That said, applications involving direct water jets (like high-pressure washdown environments), prolonged submersion, or installation in standing water pools require cables with enhanced ingress protection ratings beyond what this design provides. For such extreme wet conditions, consult with cable manufacturers regarding specialized constructions incorporating additional moisture barriers or different sheath materials like polyurethane. For typical outdoor industrial installations exposed to weather but not direct water immersion, the 602-HF-CY-J PVC delivers reliable long-term performance.

Why Choose 602-HF-CY-J PVC Over Standard Cables?

Standard industrial PVC cables typically employ Class 5 stranding rather than Class 6, incorporate basic PVC formulations without UV stabilizers, and often lack integrated screening for electromagnetic compatibility. When comparing the 602-HF-CY-J PVC against these conventional alternatives, several distinct advantages emerge.

The extra-fine Class 6 stranding provides demonstrably superior flexibility and fatigue resistance compared to Class 5 construction. In accelerated lifecycle testing simulating drag chain operation, finer stranding consistently delivers 2-3 times the bend cycles before conductor failure. This extended service life translates directly into reduced replacement costs and minimized production interruptions from cable-related equipment downtime.

UV and weather resistance represents another critical differentiator. Standard PVC formulations degrade rapidly under outdoor exposure, developing surface cracks, color fading, and eventual sheath failure within months or a few years depending on climate intensity. The specially formulated PVC compound in the 602-HF-CY-J PVC maintains integrity for years of outdoor service, making it suitable for permanent outdoor installations rather than temporary or protected applications only.

The integrated braided screen eliminates the need for separate conduit or cable tray grounding systems in EMC-sensitive applications. This screening provides effective electromagnetic shielding while maintaining the flexibility essential for drag chain applications—a combination difficult to achieve with rigid conduit systems. The coupling resistance specification of approximately 250 Ohm/km at 30 MHz provides quantifiable guidance for engineers calculating shielding effectiveness in high-frequency electronic installations.

For applications requiring custom cable lengths or specific conductor configurations, contact qualified cable suppliers who can provide technical guidance on optimal specifications for your particular installation requirements. When evaluating cable options for high-frequency applications, reference the coupling resistance specification to ensure electromagnetic performance meets system requirements.

Conclusion: Reliable Power Delivery in Motion

The 602-HF-CY-J PVC flexible screened cable represents a premium solution engineered specifically for the mechanical demands of drag chain systems, the environmental challenges of outdoor installations, and the electrical requirements of electromagnetically sensitive industrial equipment. Through careful material selection, precision manufacturing to international standards including UL AWM Style 10107 and CSA C22.2 No. 210, and thoughtful design optimization for flexibility and durability, this cable delivers reliable performance where standard constructions fail prematurely.

From CNC machining centers cycling through thousands of movements daily to outdoor automation systems exposed to weather extremes, the 602-HF-CY-J PVC provides the mechanical flexibility, environmental resistance, and electromagnetic compatibility essential for minimizing downtime in dynamic, high-motion applications. Its comprehensive specifications—spanning temperature range, voltage ratings, bending characteristics, and material properties—create a versatile platform suitable for diverse industrial applications while maintaining the specialized performance characteristics critical for demanding installations.

For engineers and facility managers seeking to reduce cable-related maintenance costs, improve system reliability, and ensure long-term performance in challenging applications, the 602-HF-CY-J PVC flexible drag chain cable represents a technically sound investment backed by rigorous testing, international certifications, and proven field performance across demanding industrial environments worldwide.
