6.35/11 kV Copper XLPE Mining Cable – AS/NZS 1972 Armoured Supply
Medium Voltage 3-Core Copper Cable with XLPE Insulation and Steel Wire Armour for Mining and Industrial Power Networks
$10.00

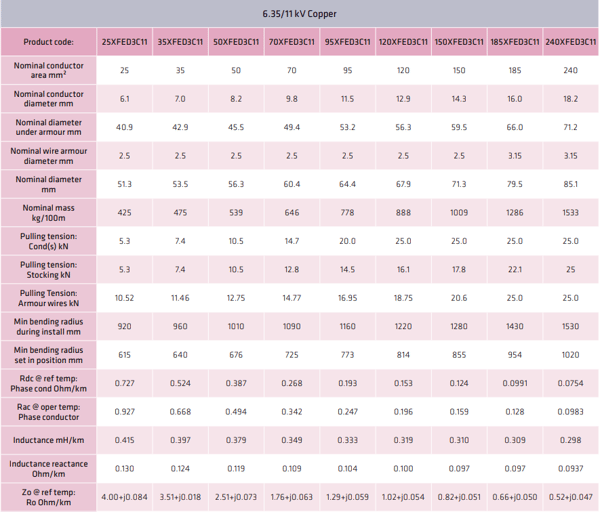

Technical Specifications
Parameter | Description |
|---|---|

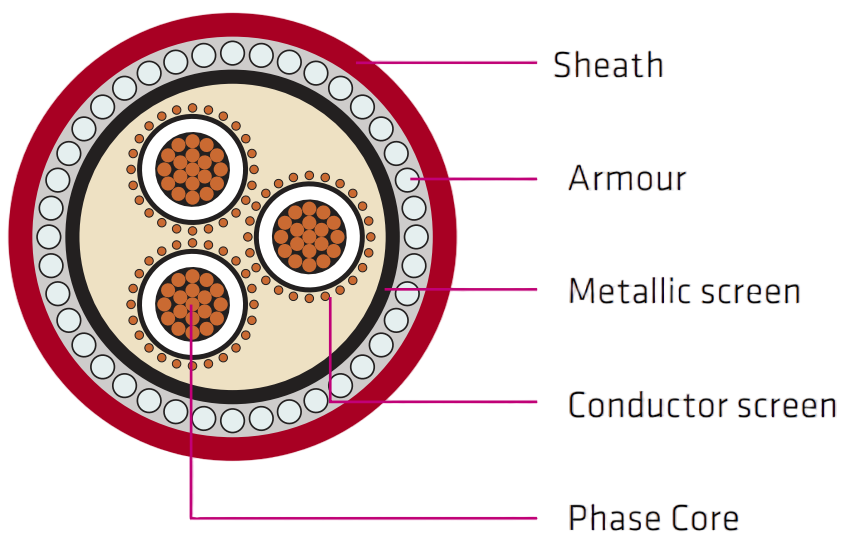

Cable Type | Three-core Copper Wire Screened Armoured Cable |
Applicable Standards | AS/NZS 1972 |
Rated Voltage | 6.35/11 kV |
Conductor Material | Plain circular compacted copper |
Conductor Screen | Extruded semiconducting compound bonded to insulation |
Insulation | Cross Linked Polyethylene (XLPE) |
Insulation Screen | Extruded semiconducting compound |
Metallic Screen | Plain annealed copper wire with combined screen conductance ≥50% of one power conductor |
Armour | Galvanised steel wires (GSW) |
Outer Sheath | Red 5V-90 Polyvinyl Chloride (PVC) |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Minimum Bending Radius | Installed cables: 12× overall diameter (12D) |
Flexibility | Rigid |
Chemical Resistance | Very good — suitable for frequent chemical exposure |
Mechanical Impact Resistance | Very heavy |
Water Resistance | Resistant to water splashes |
UV and Weather Resistance | Very good — suitable for direct solar radiation and outdoor exposure |

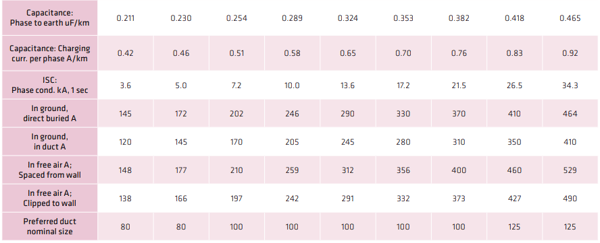

Physical & electrical characteristics
This 6.35/11 kV three-core copper wire screened armoured cable conforms to AS/NZS 1972 standards, designed for use as a primary power supply cable in mining and industrial networks. Featuring XLPE insulation with semiconducting screens, galvanised steel wire (GSW) armour, and a robust PVC outer sheath, the cable delivers reliable electrical performance and high mechanical protection. The cable is flame retardant and suitable for installation in a range of environments including free air, ducts, trenches, and direct ground burial.
Product Features
Robust Electrical Design: XLPE insulation combined with bonded semiconducting screens and metal screened conductors ensures stable electrical performance.
Heavy-Duty Mechanical Protection: GSW armour provides excellent resistance to mechanical impacts and environmental conditions.
Flame Retardant: Complies with AS/NZS 1972 flame retardant requirements ensuring enhanced safety.
Versatile Installation: Suitable for use in free air, ducts, ground, and trenches.
Rigid Construction: Designed for long term stability in fixed installations.
Application Areas
Ideal for primary power supply cables in mines and industrial power distribution networks requiring high reliability and mechanical protection.
Quality Certifications
AS/NZS 1972
Installation and Maintenance
Applicable for free air, duct, buried direct, and trench installations. Observe minimum bending radius of 12D during installation. Inspections and maintenance recommended to ensure long service life.
Customization Services
Custom lengths and specifications available to suit project requirements.
