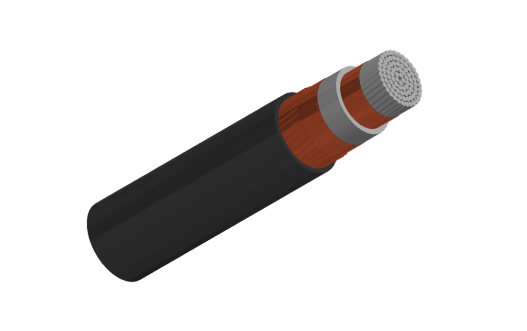

6.35/11kV Single Core Screened & PVC Sheathed (Al Conductor)
Standard AS/NZS 1429.1
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

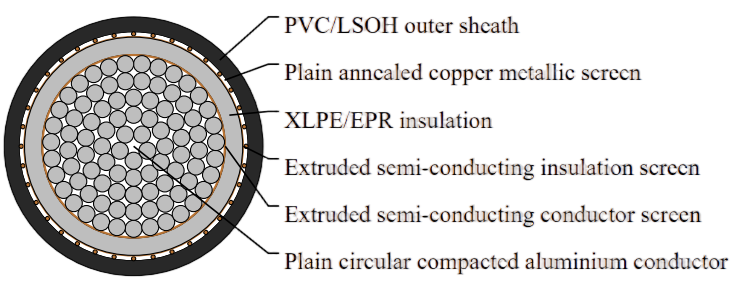

Cable Construction
CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Extruded semi-conducting compound
METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Cable Parameter

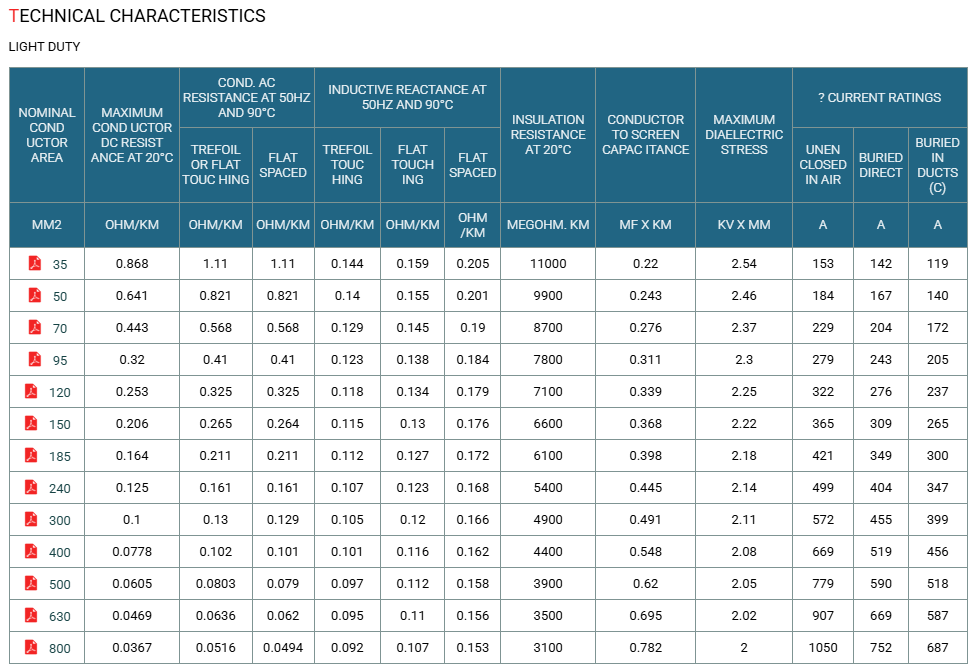

LIGHT DUTY
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON EACH CORE | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. OVERALL DIAMETER | APPROX. MASS |
|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | KG/100M |
35 | 6.9 | 3.4 | 14.9 | 20 | 36 x 0.85 | 16.3 | 22.5 | 62 |
50 | 8.1 | 3.4 | 16 | 20 | 36 x 0.85 | 17.5 | 23.7 | 68 |
70 | 9.6 | 3.4 | 17.6 | 20 | 36 x 0.85 | 19.0 | 25.2 | 78 |
95 | 11.4 | 3.4 | 19.3 | 20 | 36 x 0.85 | 20.7 | 26.9 | 89 |
120 | 12.8 | 3.4 | 20.7 | 20 | 36 x 0.85 | 22.1 | 28.3 | 99 |
150 | 14.2 | 3.4 | 22.1 | 20 | 36 x 0.85 | 23.5 | 29.7 | 109 |
185 | 15.7 | 3.4 | 23.6 | 20 | 36 x 0.85 | 25.2 | 31.4 | 123 |
240 | 18 | 3.4 | 25.9 | 20 | 36 x 0.85 | 27.6 | 33.8 | 145 |
300 | 20.1 | 3.4 | 28.3 | 20 | 36 x 0.85 | 29.6 | 36.0 | 168 |
400 | 23 | 3.4 | 31.1 | 20 | 36 x 0.85 | 32.7 | 39.3 | 202 |
500 | 26.5 | 3.4 | 34.7 | 20 | 36 x 0.85 | 35.8 | 42.6 | 239 |
630 | 29.9 | 3.4 | 38.4 | 20 | 36 x 0.85 | 39.4 | 46.4 | 289 |
800 | 34.2 | 3.4 | 42.8 | 20 | 36 x 0.85 | 44.0 | 51.3 | 351 |
Cable Parameter

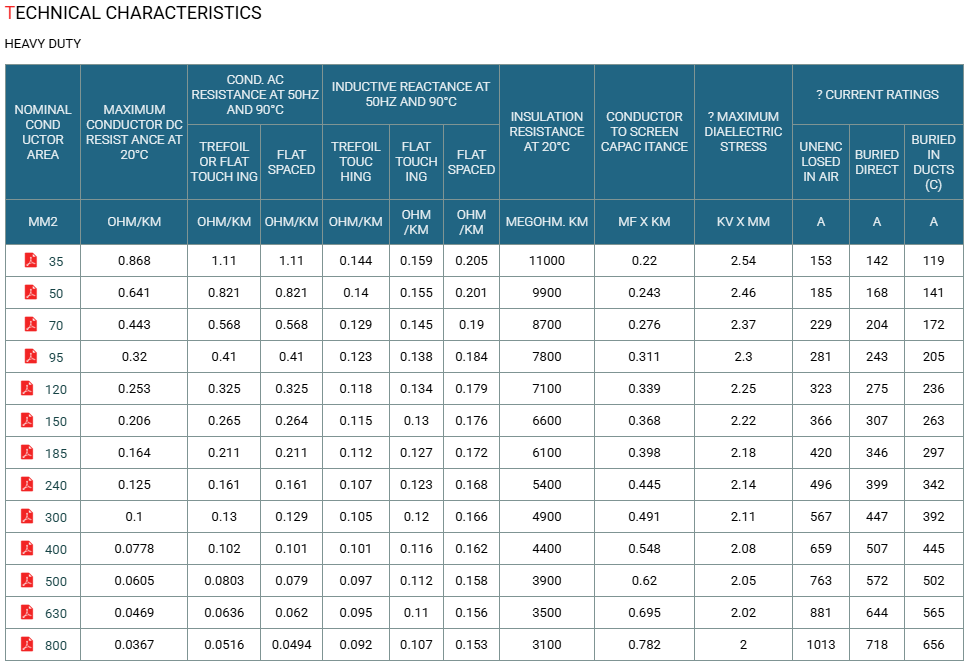

HEAVY DUTY
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON EACH CORE | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | ? NOM. OVERALL DIAMETER | ? APPROX. MASS |
|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | KG/100M |
35 | 6.9 | 3.4 | 14.9 | 23 | 40 x 0.85 | 18.2 | 22.3 | 66 |
50 | 8.1 | 3.4 | 16 | 33 | 23 x 1.35 | 20.3 | 24.4 | 82 |
70 | 9.6 | 3.4 | 17.6 | 46 | 32 x 1.35 | 21.9 | 26 | 105 |
95 | 11.4 | 3.4 | 19.3 | 62 | 43 x 1.35 | 23.6 | 27.7 | 130 |
120 | 12.8 | 3.4 | 20.7 | 69 | 48 x 1.35 | 25 | 29.1 | 145 |
150 | 14.2 | 3.4 | 22.1 | 69 | 48 x 1.35 | 26.4 | 30.7 | 155 |
185 | 15.7 | 3.4 | 23.6 | 69 | 48 x 1.35 | 27.9 | 32.2 | 170 |
240 | 18 | 3.4 | 25.9 | 69 | 48 x 1.35 | 30.2 | 34.7 | 190 |
300 | 20.1 | 3.4 | 28.3 | 69 | 48 x 1.35 | 32.6 | 37.3 | 215 |
400 | 23 | 3.4 | 31.1 | 69 | 48 x 1.35 | 35.6 | 40.5 | 250 |
500 | 26.5 | 3.4 | 34.7 | 69 | 48 x 1.35 | 39.2 | 44.3 | 295 |
630 | 29.9 | 3.4 | 38.4 | 69 | 48 x 1.35 | 42.9 | 48.4 | 345 |
800 | 34.2 | 3.4 | 42.8 | 69 | 48 x 1.35 | 47.3 | 53 | 405 |
