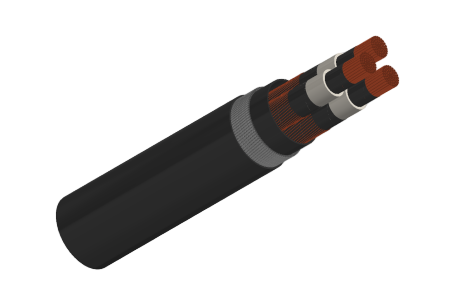

6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Cu Conductor)
Standard AS/NZS 1429.1
Cable Parameter
SECTIONAL AREA OF CONDUCTOR | NOM. CONDUCTOR DIAMETER | NOM. INSULATION THICKNESS | NOM. DIAMETE OVER INSULATION | SCREEN AREA ON CORES | NO. AND DIAMTER OF SCREENED WIRES | NOM. DIAMETE OVER SCREENED WIRES | NOM. DIAMETE OVER BEDDING | NOM. DIAMETE OF ARMOUR | NOM. DIAMETE OVER ARMOUR | NOM. OVERALL DIAMETER | ? APPROX. MASS |
|---|---|---|---|---|---|---|---|---|---|---|---|
MM2 | MM | MM | MM | MM2 | NO X MM | MM | MM | MM | MM | MM | KG/100M |
16 | 4.8 | 3.4 | 12.8 | 17 | 10 x 0.85 | 16.1 | 37.9 | 2 | 41.9 | 46.9 | 330 |
25 | 5.8 | 3.4 | 13.8 | 25.5 | 15 x 0.85 | 17.1 | 40.2 | 2.5 | 45.2 | 50.4 | 430 |
35 | 6.8 | 3.4 | 14.8 | 34 | 20 x 0.85 | 18.1 | 42.6 | 2.5 | 47.6 | 53 | 490 |
50 | 8 | 3.4 | 16 | 49.4 | 29 x 0.85 | 19.3 | 45.1 | 2.5 | 50.1 | 55.7 | 565 |
70 | 9.6 | 3.4 | 17.6 | 68.1 | 40 x 0.85 | 20.9 | 48.8 | 2.5 | 53.8 | 59.6 | 680 |
95 | 11.5 | 3.4 | 19.4 | 68.1 | 40 x 0.85 | 22.7 | 53 | 2.5 | 58 | 64.1 | 795 |
120 | 13.1 | 3.4 | 21 | 68.1 | 40 x 0.85 | 24.3 | 56.4 | 2.5 | 61.4 | 67.9 | 910 |
150 | 14.5 | 3.4 | 22.4 | 68.1 | 40 x 0.85 | 25.7 | 59.9 | 2.5 | 64.9 | 71.5 | 1020 |
185 | 16.1 | 3.4 | 24.1 | 68.1 | 40 x 0.85 | 27.4 | 63.3 | 2.5 | 68.3 | 75.2 | 1150 |
240 | 18.5 | 3.4 | 26.5 | 68.1 | 40 x 0.85 | 29.8 | 68.8 | 3.15 | 75.1 | 82.3 | 1470 |
300 | 20.7 | 3.4 | 28.9 | 68.1 | 40 x 0.85 | 32.2 | 74.1 | 3.15 | 80.4 | 88 | 1710 |
400 | 23.6 | 3.4 | 31.8 | 68.1 | 40 x 0.85 | 35.3 | 81.2 | 3.15 | 87.5 | 95.5 | 2070 |
500 | 26.5 | 3.4 | 34.7 | 68.1 | 40 x 0.85 | 38.2 | 87.6 | 3.15 | 93.9 | 102.4 | 2450 |

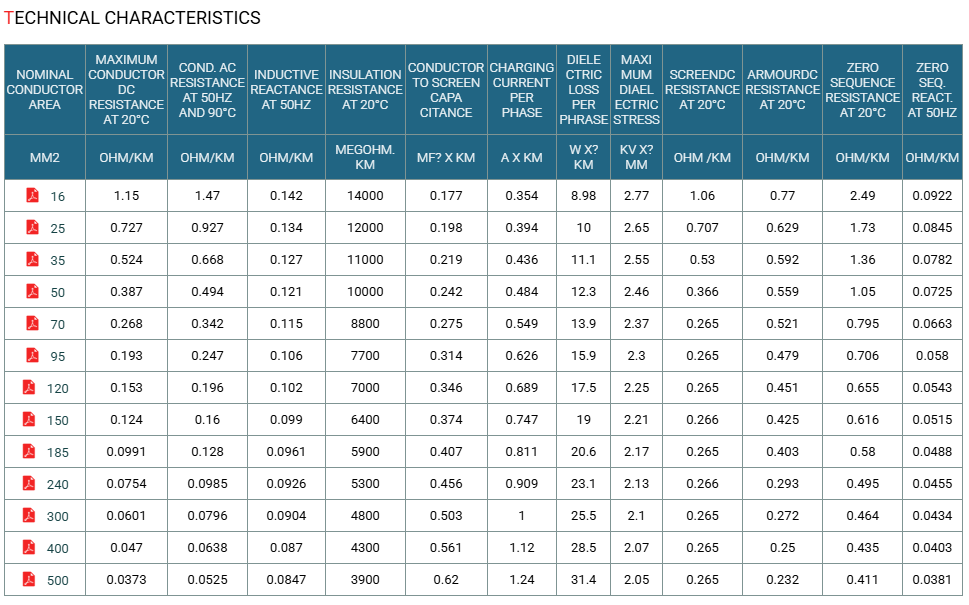

Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

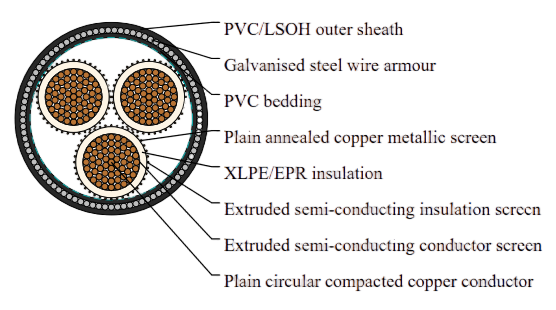

Cable Construction
CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Extruded semi-conducting compound
METALLIC SCREEN: Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
BEDDING: PVC
ARMOURING:Galvanised steel wires
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
