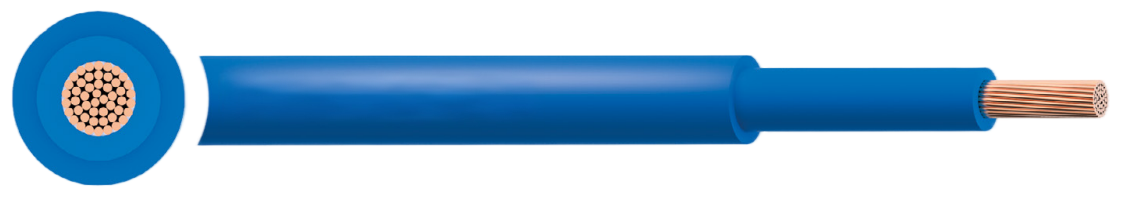

6381B BS 7211 / IEC 60502-1 LSZH Flexible Cable

APPLICATION

Flexible single core insulated and sheathed LSZH cable.Suitable for DC power supplies on telecoms equipment and power applications where flexibility is required. For installations where fire, smoke emission and toxic fumes create a potential   risk to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

Up to 35mm2 : 450/750V

50mm2  and above: 0.6/1kV

Temperature Rating

Fixed: 0°C to +90°C

Maximum operating temperature: +90°C

Short-circuit temperature: +250°C

Minimum Bending Radius

Up to 50mm2 : 3 x overall diameter 70mm2  and

above: 4 x overall diameter
