6491B / H07Z-R EN 50525-3-41 LSZH Cable
Safe Fixed Installation Cable for Conduits in Fire-Sensitive Environments
$1.00
APPLICATION
Suitable for use in conduit and for fixed, protected installation. For installations where fire, smoke emission and toxic fume create a potential risk to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U 450/750V
Temperature Rating
Fixed: 0°C to +90°C
Minimum Bending Radius
6 x overall diameter

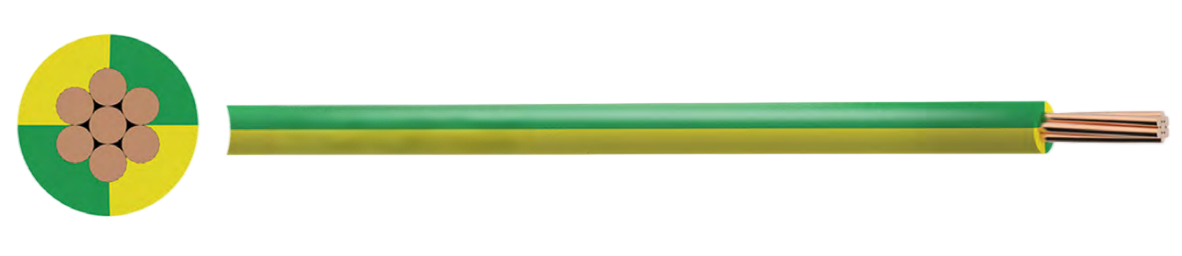

CONSTRUCTION
Conductor
Class 2 stranded copper conductor)
Insulation
LSZH (Low Smoke Zero Halogen)
Insulation Colour
Red Black Blue Yellow Orange White
Green/Yellow Grey Brown Violet Pink
STANDARDS
EN 50525-3-41, EN 60228
