8723 - LSZH 300V Alternative Cable
8723 - LSZH Alternative cable is suitable for instrumentation, computer and security applications, point of sale, control and systems applications.
CHARACTERISTICS
Voltage Rating
300V
Temperature Rating
Fixed: -20ºC to +80ºC

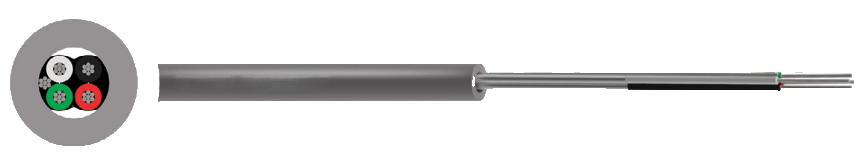

CONSTRUCTION
Conductor
Class 2 stranded tinned copper
Insulation
PE (Polyethylene)
Screen
Aluminium foil tape
Drain Wire
Stranded tinned copper
Sheath
U.V resistant LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: Black Red
Pair 2: Green White
Sheath Colour
Grey
