8760 300V LSZH Alternative Cable
This cable is suitable for use in instrumentation, data and audio applications where protection against electrical interference is required.
APPLICATION This cable is suitable for use in instrumentation, data and audio applications where protection against electrical interference is required. Cables with polyethylene insulation show lower signal loss than those using PVC. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment. |
CHARACTERISTICS Voltage Rating 300V Temperature Rating Fixed: -20ºC to +80ºC |

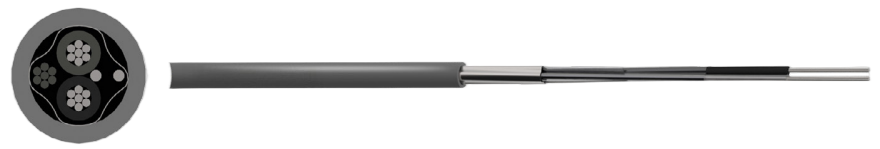

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
HDPE (High-Density Polyethylene)
Screen
Aluminium foil
Drain Wire
Stranded tinned copper
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: Black Transparent
Sheath Colour
Grey
