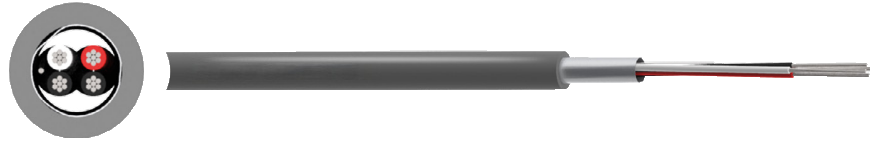

9502 - 300V LSZH Alternative Cable
LSZH Alternative overall screened cable provides protection against electrical interference.
APPLICATION LSZH Alternative overall screened cable provides protection against electrical interference. Suitable for use over long distances at high performance levels and where low signal distortion is required. Used for instrumentation control and RS232 applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. |
CHARACTERISTICS Voltage Rating 300V Temperature Rating Fixed: -20°C to +80°C |
CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Drain Wire
Tinned copper
Screen
Al-Foil (Aluminium Foil)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: Black Red
Pair 2: ● Black o White
Pair 3: Black Green
Pair 4: Black Blue
Sheath Colour
Grey
