9841 - 300V LSZH Alternative Cable
9841-300V LSZH Alternative cable is a 24 AWG low capacitance cable with a high level of screening.
APPLICATION 9841-300V LSZH Alternative cable is a 24 AWG low capacitance cable with a high level of screening. Provides interference free, high speed data transmission suitable for RS485 applications. |
CHARACTERISTICS Voltage Rating 300V Temperature Rating Fixed: -20°C to +80°C |

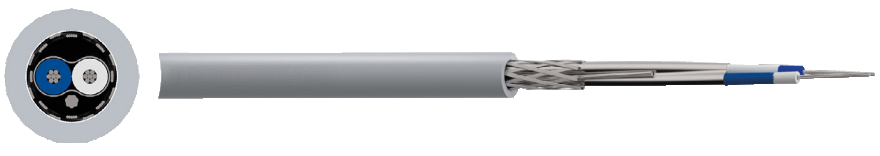

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Screen
Al/PET (Aluminium polyester foil)
Drain Wire
Stranded Tinned copper
Braid
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: e Blue/White ● White/Blue
Sheath Colour
Grey
