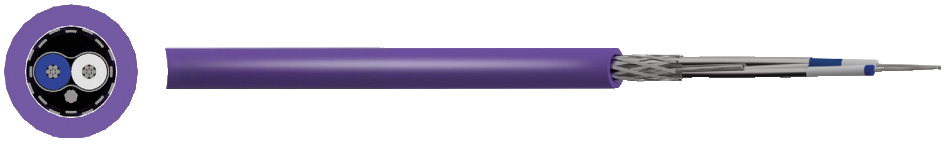

9841 - LSZH 600V Alternative Cable
9841 Alternative cable is a 24 AWG low capacitance cable with a high level of screening.
CHARACTERISTICS
Voltage Rating
600V
Temperature Rating
Fixed: -40°C to +80°C
CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Screen
Al/PET (Aluminium polyester foil)
Drain Wire
Stranded Tinned copper
Braid
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Blue/White White/Blue
Sheath Colour
● Violet
