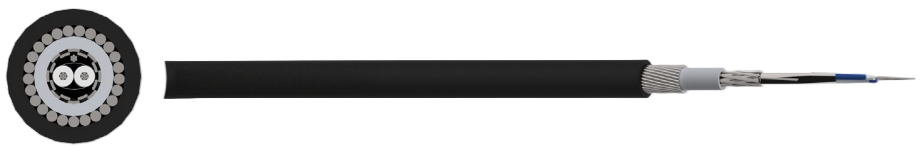

9841 SWA LSZH Alternative Cable
9841 Alternative cable is a 24 AWG low capacitance cable with a high level of screening. Provides interference free, high speed data transmission suitable for RS485 applications.
CHARACTERISTICS
Voltage Rating
300V
Temperature Rating
Fixed: -20°C to +80°C
CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Screen
Aluminium foil tape
Drain Wire
Stranded tinned copper
Inner Sheath
PE (Polyethylene) as appropriate
Armour
Galvanized steel wire
Braid
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Blue/White White/Blue
Sheath Colour
● Black
