9842 - LSZH 300V Alternative Cable
9842 Alternative cable is a 24 AWG low capacitance cable with a high level of screening.
APPLICATION
9842 Alternative cable is a 24 AWG low capacitance cable with a high level of screening. Provides interference free, high speed data transmission suitable for RS485 applications.
CHARACTERISTICS
Voltage Rating
300V
Temperature Rating
Fixed: -20°C to +80°C

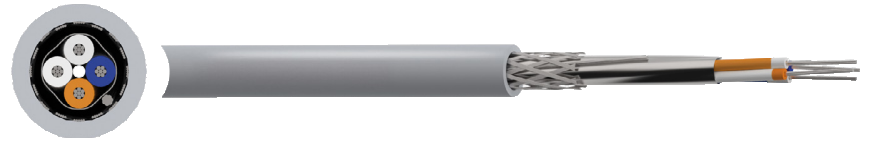

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Screen
Al/PET (Aluminium polyester foil)
Drain Wire
Stranded Tinned copper
Braid
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1:
Blue/White White/Blue
Pair 2:
Orange/White White/Orange
Sheath Colour
Grey
