9842 - SWA LSZH 300V Alternative Cable
9842 Alternative cable is a 24 AWG low capacitance cable with a high level of screening.
APPLICATION
9842 Alternative cable is a 24 AWG low capacitance cable with a high level of screening. Provides interference free, high speed data transmission suitable for RS485 applications.
CHARACTERISTICS
Voltage Rating
300V
Temperature Rating
Fixed: -40°C to +80°C

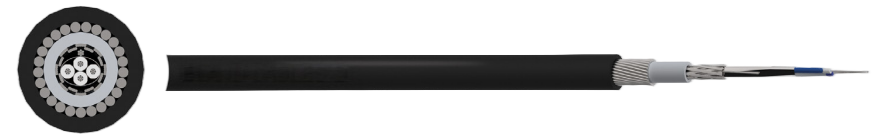

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Screen
Al/PET (Aluminium polyester foil)
Drain Wire
Stranded Tinned copper
Braid
TCWB (Tinned Copper Wire Braid)
Inner Sheath
PE (Polyethylene)
Armour
SWA (Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: Blue/White White/Blue
Pair 2: Orange/White White/Orange
Sheath Colour
Grey
