9843 - LSZH 300V Alternative Cable
9843 Alternative cable is a 24 AWG low capacitance cable with a high level of screening.
APPLICATION
9843 Alternative cable is a 24 AWG low capacitance cable with a high level of screening. Provides interference free, high speed data transmission suitable for RS485 applications.
CHARACTERISTICS
Voltage Rating
300V
Temperature Rating
Fixed: -20°C to +80°C
Minimum Bending Radius
10 x overall diameter

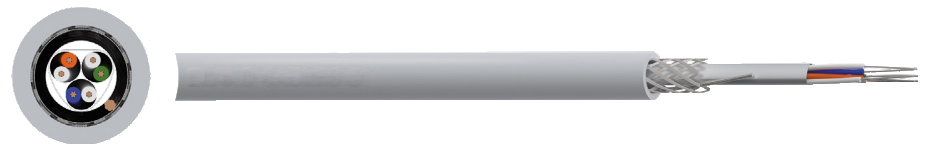

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Inner Sheath
LSZH (Low Smoke Zero Halogen) compound
Screen 1
AI/PET (Aluminium foil/Polyester tape)
Screen 2
TCWB (Tinned Copper Wire Braid)
Drain Wire
Stranded Tinned copper
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1:
Blue/White White/Blue
Pair 2:
Orange/White
Pair 3:
White/Green Green/White
Sheath Colour
Grey
