9844 - SWA LSZH 600V Alternative Cable
9844 Alternative cable is a 24 AWG low capacitance cable with a high level of screening.
APPLICATION
9844 Alternative cable is a 24 AWG low capacitance cable with a high level of screening. Provides interference free, high speed data transmission suitable for RS485 applications.
CHARACTERISTICS
Voltage Rating
600V
Temperature Rating
-20°C to +80°C
Minimum Bending Radius
10 x overall diameter

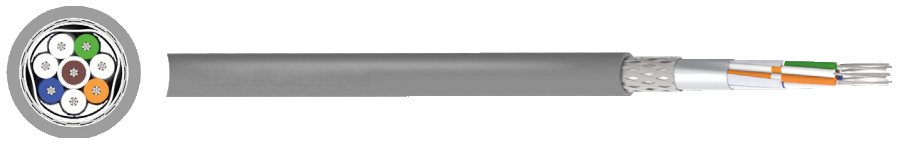

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
PE (Polyethylene)
Inner Sheath
LSZH (Low Smoke Zero Halogen) compound
Screen 1
AL-PET (Aluminium Foil/Polyester tape)
Screen 2
TCWB (Tinned Copper Wire Braid)
Drain Wire
Stranded Tinned copper
Armour
SWA (Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen) compound
Core Identification
Pair 1: White/Blue
Pair 2: White/Orange Orange/White
Pair 3: White/Green Green/White
Pair 4: White/Brown Brown/White
Sheath Colour
Grey
