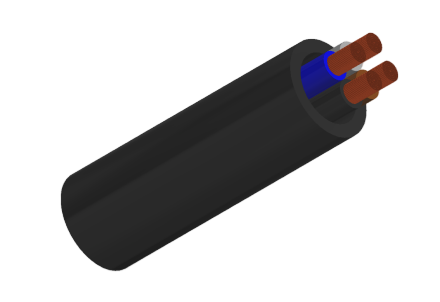

A07RN-F

Application and Description

These cables are designed to provide high flexibility and have the capacity to withstand ozone,weather and oils/greases, mainly used for connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and agricultural plants and on Cable Construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, for directly laying on modules of hoisting devices, machinery etc. Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts.

Standard and Approval

• CEI 20-19

• HD 22.4

• IEC 60245-4

• CE low voltage directive 73/23/EEC & 93/68/EEC.

• ROHS compliant

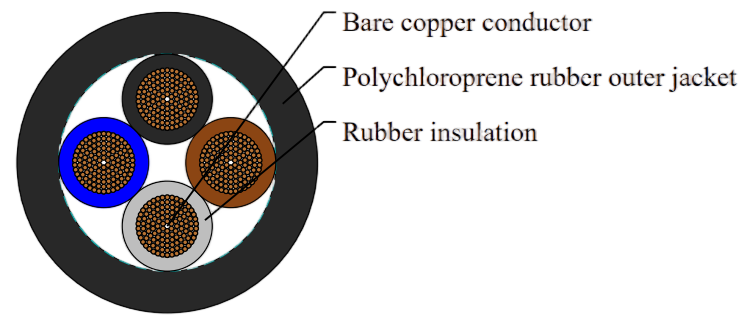

Construction

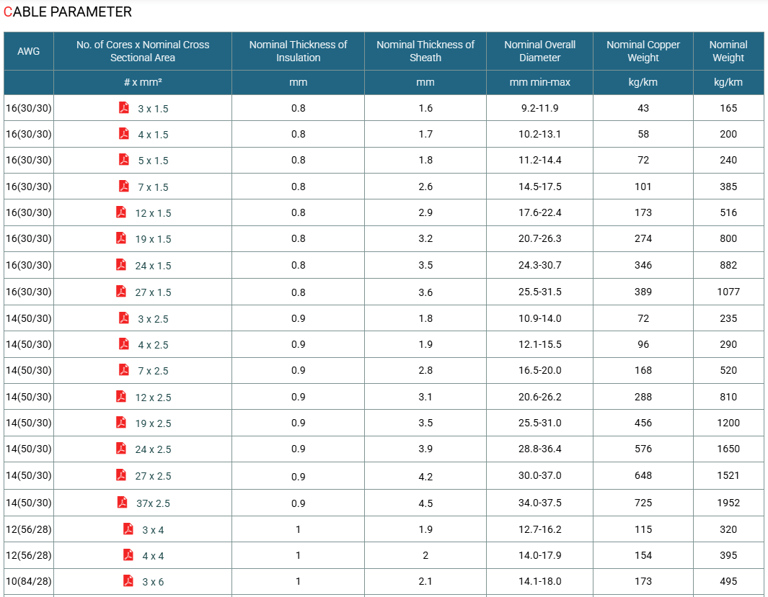

Technical Characteristics
