Aluminium Concentric BS 7870 LSZH Cable
Used by distribution network operators (DNO’s) when providing the final connection to domestic properties.
$7.00
APPLICATION Used by distribution network operators (DNO’s) when providing the final connection to domestic properties. Also suitable for sub main distribution and particularly used within high rise buildings and street lighting systems. |
CHARACTERISTICS Voltage Rating (Uo/U) 0.6/1kV Temperature Rating -15°C to +70°C Minimum Bending Radius 8 x overall diameter |

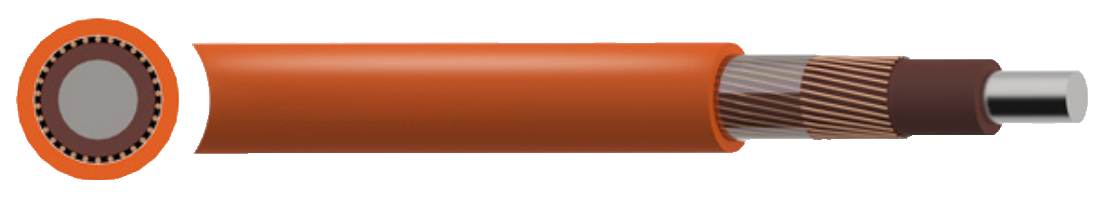

CONSTRUCTION
Conductor
Class 1 solid aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Concentric Neutral / Earth Conductor
Single layer of plain copper wires
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Orange
STANDARDS
BS 7870-3-11, EN 60228
