Aluminium XL-EVA LSZH 1kV Turbine Tower Cable
STANDARDS:IEC 60502-1, IEC 60228
APPLICATION
Single core lightweight aluminium conductor turbine power cable with durable halogen-free sheathing for installation inside turbine towers. UV, ozone, water & oil resistant.
CHARACTERISTICS
Rated Voltage Uo/U
0.6/1kV
Temperature Rating
-40OC +90OC
Minimum Bending Radius
6x Overall Diameter
Maximum Tensile Load
15N/mm²

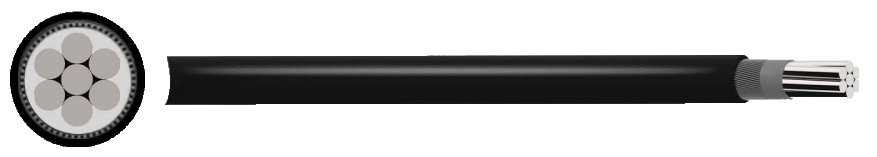

CONSTRUCTION
Conductor
Class 2 stranded Aluminium
Insulation
EPR (Ethylene Propylene Rubber)
Screen
TWCB (Tinned wire copper braid)
Sheath
XL-EVA (cross-linked Ethylene-Vinyl Acetate)
Sheath Colour
● Black
