Armoured Cat 6 S/FTP 23AWG
Cable
Applications
These Cat6 S/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.
Standards
EN 50288
ISO 11801
IEC 61156-5
IEC 60332-1
IEC 60754-1/2
IEC 61034

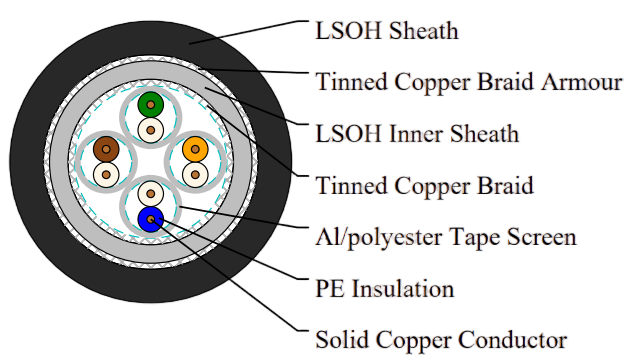

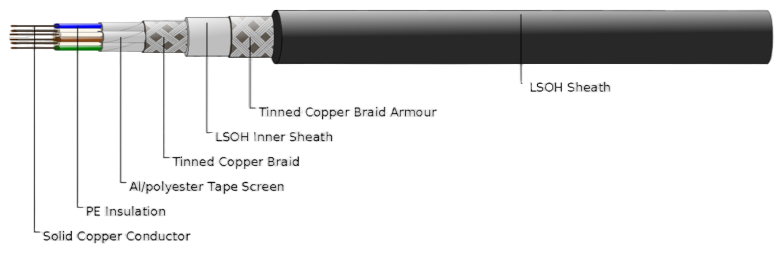

Construction
Conductors : Solid bare copper conductor.
Insulation : PE.
Twinning : Two coloured insulated conductors twisted together to form a pair.
Individual Screen : Al/polyester tape.
Overall Screen : Tinned copper braid.
Inner Sheath : LSOH.
Armour : Tinned copper braid.
Outer Sheath : LSOH (SHF1).
Core Identification
Pair 1 | White, Blue |
Pair 2 | White Orange |
Pair 3 | White, Green |
Pair 4 | White, Brown |
Electrical Properties
Maximum DC Loop Resistance | Ω/km | 165 |
|---|---|---|
Maximum Resistance Unbalance |
| 2% |
Minimum Insulation Resistance | 1000 | |
Nominal Capacitance @800Hz | nF/km | 43 |
Maximum Capacitance Unbalance (pair to ground) | pF/km | 1500 |
Characteristic Impedance @1-100MHz | Ω | 100 ± 15 |
Nominal Velocity of Propagation |
| 79% |
Maximum Propagation Delay | ns/100 m | 427 |
Maximum Delay Skew | ns/100 m | 12 |
Maximum Transfer Impedance @1MHz | mΩ /m | 5 |
Maximum Transfer Impedance @10MHz | mΩ /m | 10 |
Maximum Transfer Impedance @30MHz | mΩ /m | 30 |
Maximum Transfer Impedance @100MHz | mΩ /m | 100 |

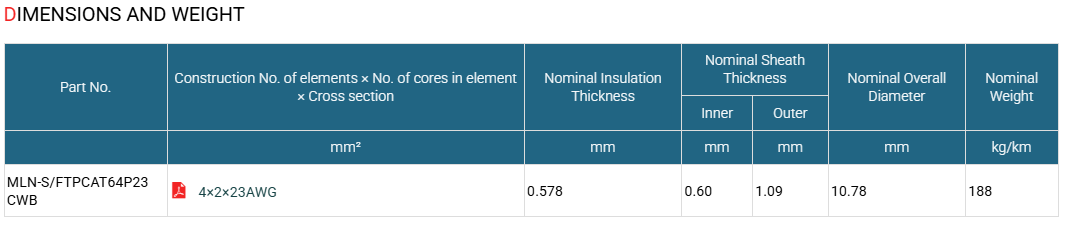

Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 4×OD (fixed installed)
Temperature Range : -20℃ ~ +60℃
