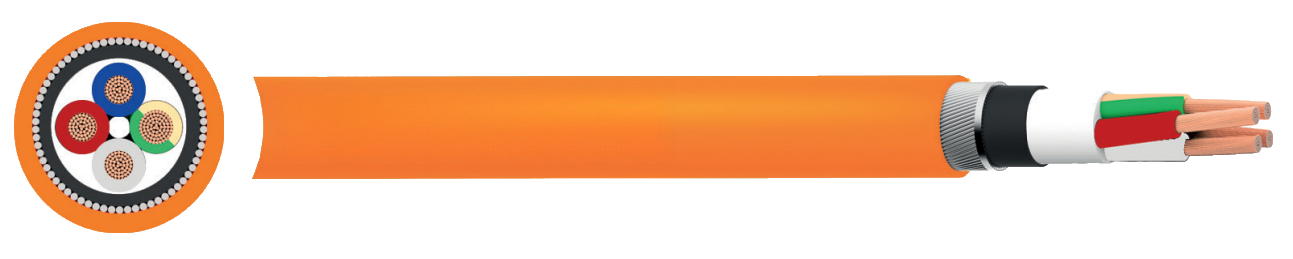

AS/NZS 5000.1 XLPE/SWA/PVC + Earth Armoured Cable 0.6/1kV
Copper armoured power cable with reduced earth for mains, sub-mains, and underground duct installations in buildings and industrial plants
$25.00
APPLICATION
Armoured power cables with reduced earth for use in mains,sub-mains and sub-circuits where enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
CHARACTERISTICS
Rated Voltage Uo/U
0.6/1kV
Temperature Rating
Maximum operating temperature +90oC
Minimum Bending Radius
8x overall diameter
CONSTRUCTION
Conductor
Plain annealed copper
Insulation
XLPE X-90 (Cross-linked polyethylene)
Bedding
PVC 5V-90 (Polyvinyl Chloride)
Armour
SWA (Galvanised Steel Wire Armour)
Outer Sheath
PVC 5V-90 (Polyvinyl Chloride)
Core Identification
3 Cores + Earth: Red White Blue Green/Yellow
4 Cores + Earth: Red White Blue Black Green/Yellow
Sheath Colour
Orange
