AWA LSZH Medium Voltage Cable - BS 6724
Single core low smoke zero halogen cable for critical fire safety installations
$10.00
APPLICATION Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. |
CHARACTERISTICS Voltage Rating Uo/U 1.9/3.3kV Temperature Rating Maximum Operating: +90ºC Maximum Short-Circuit: +250°C Minimum Bending Radius 15 x overall diameter |

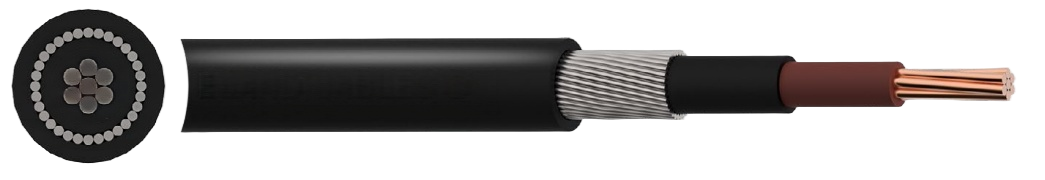

CONSTRUCTION
Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Armour
AWA (Aluminium Wire Armour)
Outer Sheath
HFFR (Halogen free flame retardant)
Core Identification
● Brown
Sheath Colour
● Black
STANDARDS
BS 6724, EN 60228
Low Smoke Zero Halogen to IEC/EN 61034, IEC/EN 60754 Flame retardant to IEC/EN 60332-1
UV Resistant
