A/XMK Plus Cable
The AXMK and XMK Plus is designed for the replacement of AXPK and AXPK-PE.
APPLICATION The AXMK and XMK Plus is designed for the replacement of AXPK and AXPK-PE. The outer sheath is self-extinguishing and halogen-free. Suitable for fixed installation indoors and outdoors, perfect for ploughing down. Suitable for cable ducts and house connections. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 4kV/50Hz Temperature Rating Laying temperature: -20ºC Maximum Conductor temperature: +90ºC Short Circuit Temperature 250°C Minimum Bending Radius 12 x overall diameter |

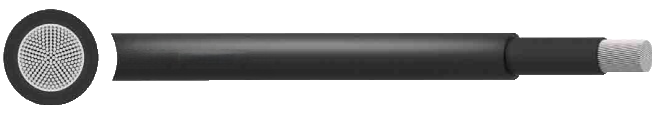

CONSTRUCTION
Conductor
AXMK
Class 2 round stranded and compact aluminium
XMK
Class 2 round stranded and compact copper
Insulation
XLPE (Cross-Linked Polyethylene)
Outer Sheath
Halogen free polyolefin, UV resistant
Core Identification
● Black
Sheath Colour
● Black
