AXQJ EMC 1kV Cable

APPLICATION

The AXQJ 1kV Full screen cable is suitable for use in installation, both indoors and outdoors in air, ground and water.

CHARACTERISTICS

Voltage Rating

1kV

Temperature Rating

Minmum installation: 0°C

Recommended minimum installation: 0°C

Maximum Operating: 90°C

Maximum Short-Circuit: 250°C

Minimum Bending Radius

12x overall diameter

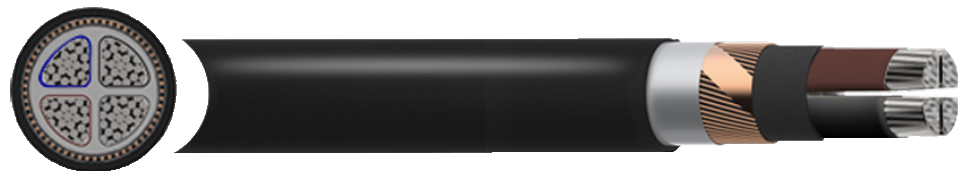

CONSTRUCTION

Conductor

Sector Shaped Stranded Aluminium

Insulation

XLPE (Cross-Linked Polyethylene)

Inner Sheath

HFFR (Halogen free flame retardant)

Screen

Annealed copper wires with opposite open helix of copper

Outer Sheath

HFFR (Halogen free flame retardant)

Core Identification

4 core:

Blue      Brown     Black     Grey

Sheath Colour

● Black
