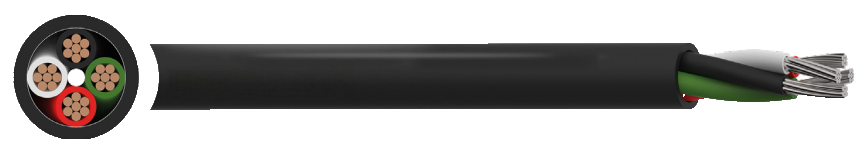

Belden 8444NH Multi-Conductor Cable
General purpose unscreened multi-pair cable for use in audio, gas, data, security and instrumentation application.
CHARACTERISTICS
Voltage Rating
300V
Temperature Rating
-20°C to +80°C
Minimum Bending Radius
10 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded tinned copper
Insulation
PP (Polypropylene)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
● Black o White ● Red ● Green
Sheath Colour
● Black
