BFOI(i)/BFOU(i) (MRE-M2XCH PiMF/TiMF) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)
Cable
Application
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
IEC 60092-350/360/376
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

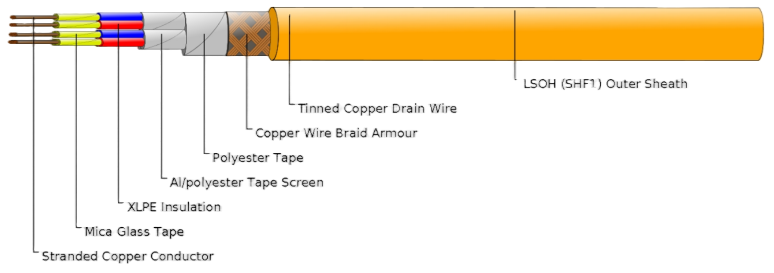

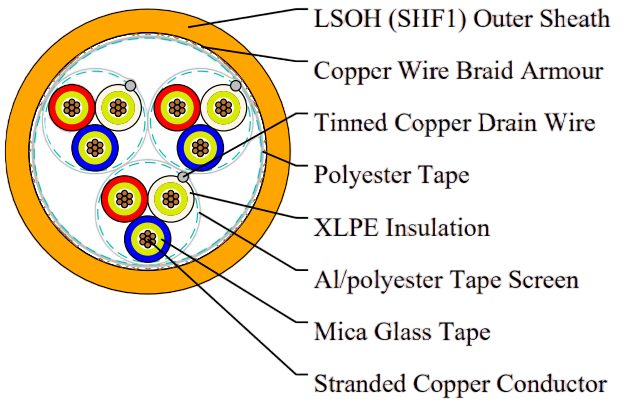

Construction
Conductors : Class 2 stranded copper conductor.
Insulation : Mica tape + XLPE.
Cabling Element : Pair/Triple.
Individual Screen : Al/polyester tape.
Drain Wire : Tinned copper wire.
Inner Covering : Lapped polyester tape.
Armour : Copper wire braid.
Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Pair : White/blue with printed pair number and core number.
Triple : White/blue/red with printed triple number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 6×OD
Temperature Range : -30℃ ~ +80℃
