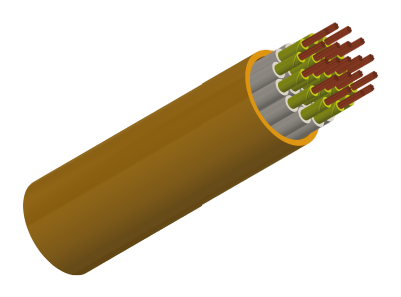

BI/BU (MFX400) 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Multicore)

Application

These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free.

Standards

IEC 60092-350/353/360

IEC 60331-21

IEC 60332-1

IEC 60332-3-22

IEC 60754-1/2

IEC 61034

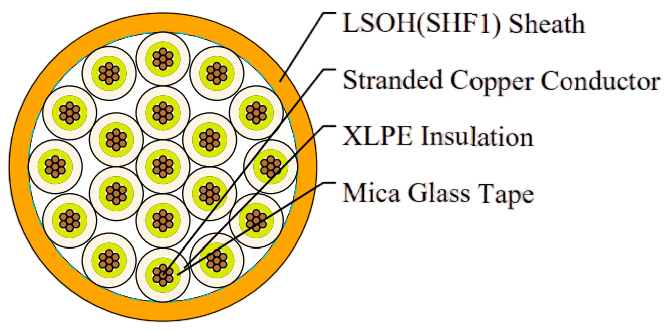

Construction

Conductors : Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.

Insulation : Mica tape + XLPE.

Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

Two cores : Blue, Brown.

Three cores : Brown, Black, Grey.

Four cores : Blue, Brown, Black, Grey.

Five cores : Blue, Brown, Black, Grey, Black.

Multi cores : White with black numbers.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)

Temperature Range : -30℃ ~ +80℃
