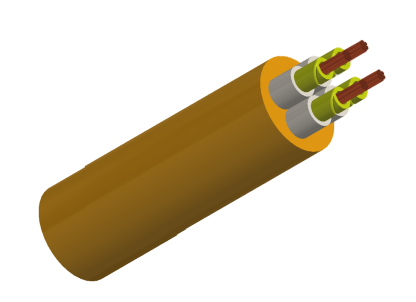

BI/BU (MRE-M2XH) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Instrumentation & Control Cables (Multicore)
Cable
Application
These cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
IEC 60092-350/360/376
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

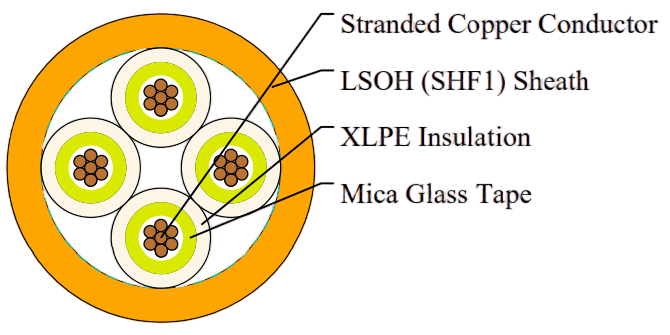

Construction
Conductors : Class 2 stranded copper conductor.
Insulation : Mica tape + XLPE.
Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
White with printed number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 4×OD
Temperature Range : -30℃ ~ +80℃
