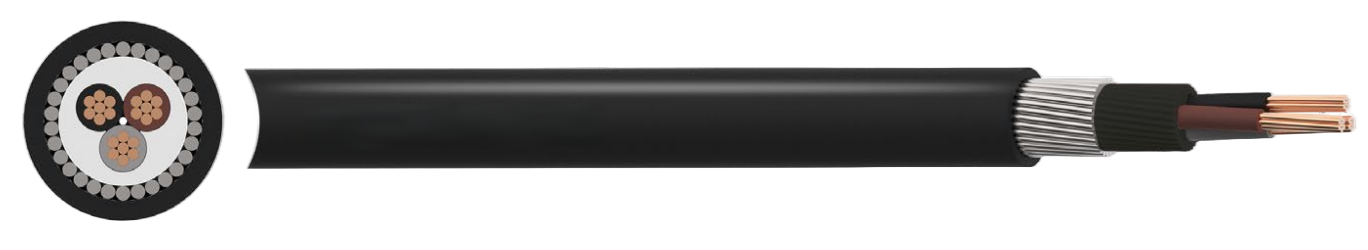

BS 5467 Copper Conductor Multi Core SWA PVC 1.9/3.3kV Cable
Durable armoured copper cable for direct burial and fixed indoor/outdoor installations
$15.00
APPLICATION
Multi-core PVC cable with steel wire armour (SWA). This cable is suitable for direct burial free-draining soil conditions for fixed indoor and outdoor installations.
STANDARDS
BS 5467, IEC 60502-1, EN 60228
Flame retardant to IEC/EN 60332-1 UV Resistant
CHARACTERISTICS
Voltage Rating Uo/U
1.9/3.3kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Separator
Polyester Tape
Filler
PVC (Polyvinyl Chloride)
Armour
SWA (Galvanized Steel Wire Armour)
Outer Sheath
PVC (Polyvinyl Chloride)
Core Identification
Brown Black Grey
Sheath Colour
● Black
