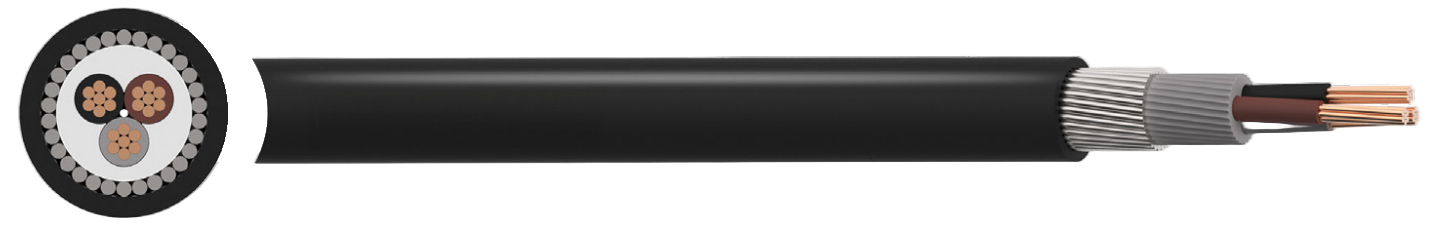

BS 5467 Copper Conductor Multi Core SWA PVC BASEC 0.6/1kV Cable
Multi-core PVC cable with steel wire armour for safe power and control installations indoors, outdoors, and underground
$15.00
APPLICATION
Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -25°C to +90°C
Minimum Bending Radius
1.5mm2 to 16mm2 - Fixed: 6 x overall diameter 25mm2 and above - Fixed: 8 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
SWA (Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
2 core: Brown Blue
3 core: ●Brown ● Black ● Grey
3 core (optional) : e Green/Yellow Blue ● Brown
4 core: ● Brown ● Black ● Blue Grey
4 core (optional) : e Green/Yellow ● Brown ● Black ● Grey
5 core: e Green/Yellow ● Brown Blue ● Black Grey
7 core and above: White cores with Black numbers
Sheath Colour
● Black
STANDARDS
BS 5467, IEC/EN 60502-1, IEC/EN 60228 Flame Retardant to IEC/EN 60332-1-2
UV Resistant
