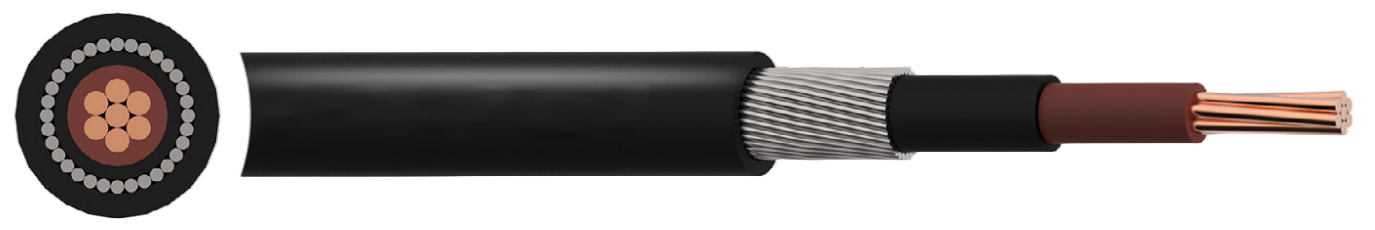

BS 5467 Copper Conductor Single Core AWA PVC 1.9/3.3kV Cable
Single-core PVC power and control cable with AWA for underground, indoor, and outdoor installations
$10.00
STANDARDS
BS 5467, IEC/EN 60502-1, EN 60228
Flame retardant to IEC/EN 60332-1 UV Resistant
APPLICATION
Single core PVC cable with aluminium wire armour (AWA).
Power and auxiliary control cables for use in power networks, underground in free-draining soil, outdoor and indoor applications and for use in cable ducting.
CHARACTERISTICS
Voltage Rating Uo/U
1.9/3.3kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
8 x overall diameter
CONSTRUCTION
Conductor
Class 2 circular stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Separator
Polyester Tape
Filler
PVC (Polyvinyl Chloride)
Armour
AWA (Aluminium Wire Armour)
Outer Sheath
PVC (Polyvinyl Chloride)
Core Identification
● Brown
Sheath Colour
● Black
