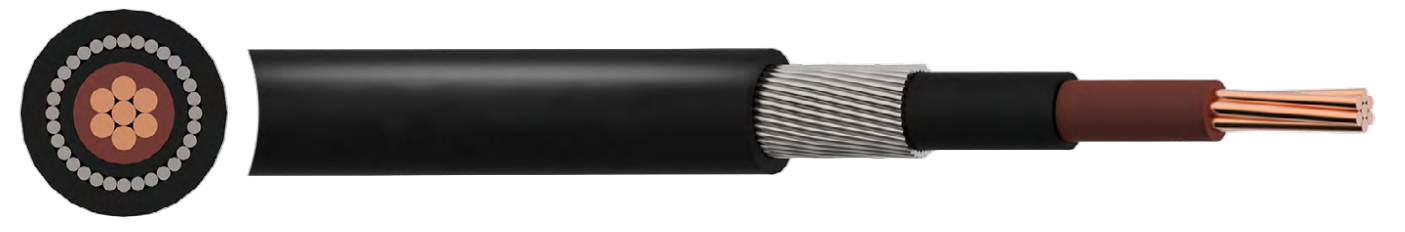

BS 5467 Copper Conductor Single Core AWA PVC BASEC 0.6/1kV Cable
Single-core PVC cable with aluminium wire armour for safe power and control installations indoors, outdoors, and underground
$15.00
STANDARDS
BS 5467, IEC/EN 60502-1, IEC/EN 60228 Flame Retardant to IEC/EN 60332-1-2
UV Resistant
APPLICATION
Single core PVC cable with aluminium wire armour (AWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -25°C to +90°C
Minimum Bending Radius
Fixed: 8 x overall diameter
CONSTRUCTION
Conductor

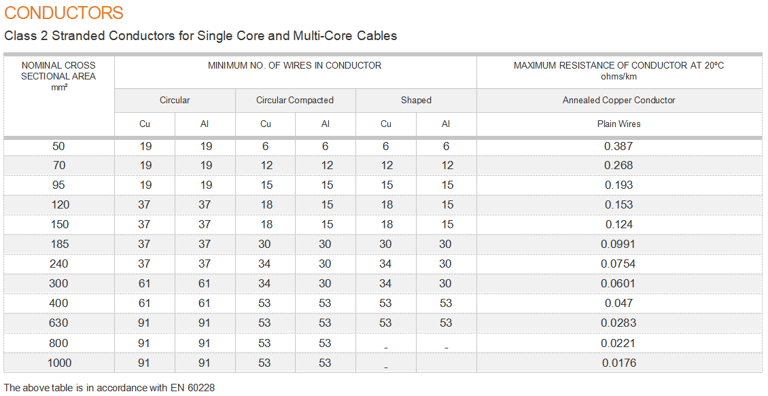

Class 2 stranded copper conductor
We are on a journey to Net Zero.
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
AWA (Aluminium Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
● Brown
Sheath Colour
● Black
