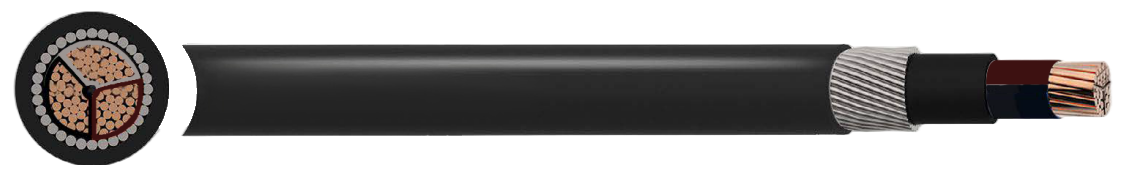

BS 5467 Sectoral Shaped Copper Conductor Multi Core SWA 1.9/3.3kV Cable
Armoured copper power and control cable for underground, indoor, and outdoor installations
$15.00
STANDARDS
BS 5467, IEC 60502-1
Flame retardant to IEC/EN 60332-1 UV Resistant
APPLICATION
Power and auxiliary control cables for use in power networks, underground in free-draining soil, outdoor and indoor applications and for use in cable ducting.
CHARACTERISTICS
Voltage Rating Uo/U
1.9/3.3kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 sectoral shaped stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Separator
Polyester Tape
Filler
PVC (Polyvinyl Chloride)
Armour
SWA (Galvanised steel wire armour)
Outer Sheath
PVC (Polyvinyl Chloride)
Core Identification
Brown Black Grey
Sheath Colour
● Black
