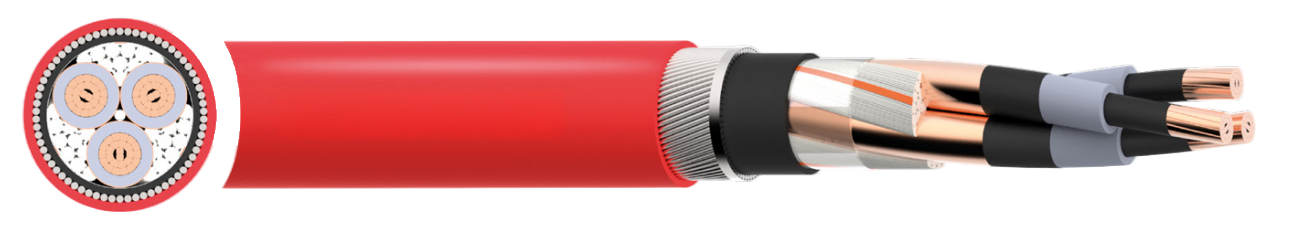

BS 6622 CU XLPE AWA/SWA PVC 3.8/6.6kV Cable
Armoured copper power cable for external and direct burial distribution networks
$10.00
APPLICATION
Armoured power distribution cables for external and direct burial applications in power networks.
STANDARDS
BS 6622, IEC/EN 60228
CHARACTERISTICS
Voltage Rating Uo/U (Um)
3.8/6.6 (7.2) kV
Temperature Rating
Maximum conductor operating temperature: 90°C
Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C
Minimum Bending Radius
Single core: 15 x overall diameter
Multi core: 13 x overall diameter
CONSTRUCTION
Conductor
Class 2 Stranded Circular Compacted Copper
Conductor Screen
Extruded Inner Semi Conductor (Bonded Type)
Insulation
XLPE (Cross-Linked Polyethylene)
Outer Semi Conductor
Extruded Outer Semi Conductor (Strippable Type)
Metallic Screen
Copper tape with 10% overlap
Inner Sheath
PVC (Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Outer Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
● Red ● Black
